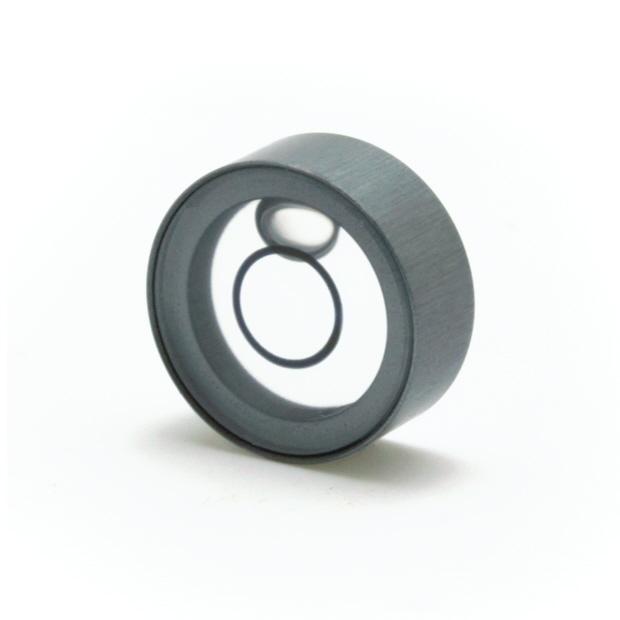

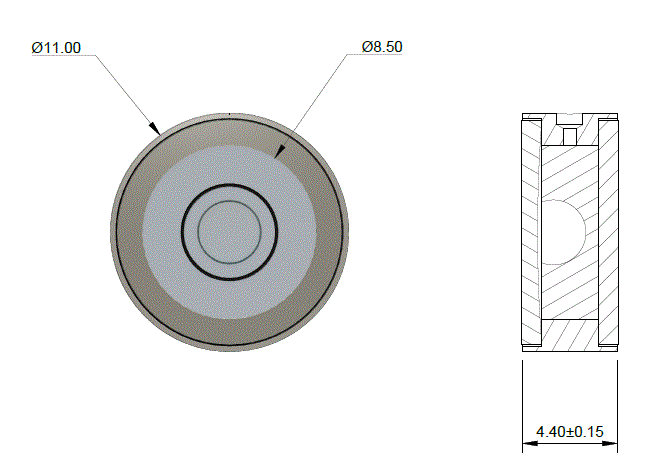

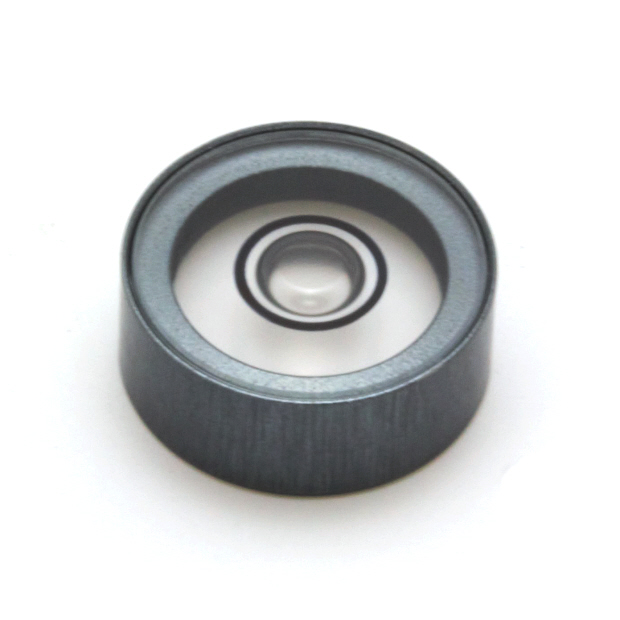

Product Drawing (pdf 282 KB) 6287/1 – Circular vial, Ø11mm x 4.4, transparent, 100’/2mm
Features
- Sensitivity 100' per 2mm bubble movement
- Precision ground glass top lens
- Black anodised Aluminium body
- High contrast bubble gives excellent visibility
- Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
- Transparent
- Wide operational temperature range
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 11 | mm |
Height | 4.4 | mm |
Sensitivity | 100 | minutes per 2mm |
Backing Colour | Transparent | - |
Bubble Size | 3.0 | mm |
Ring Diameter | 4.5 | mm |
Ring Colour | Black | - |
Finish | Black anodised | - |
Liquid Colour | Clear | - |
Lens Material | Glass | - |
Dimension | Value | Unit |
---|---|---|
Diameter | 11 | mm |
Height | 4.4 | mm |
Weight | 1 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 65 | °C |
Storage Temperature Range | -30 to 70 | °C |
