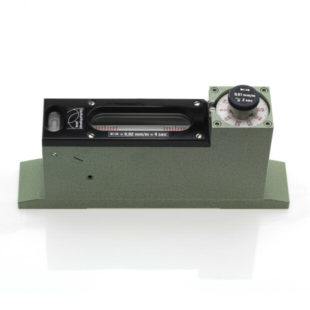

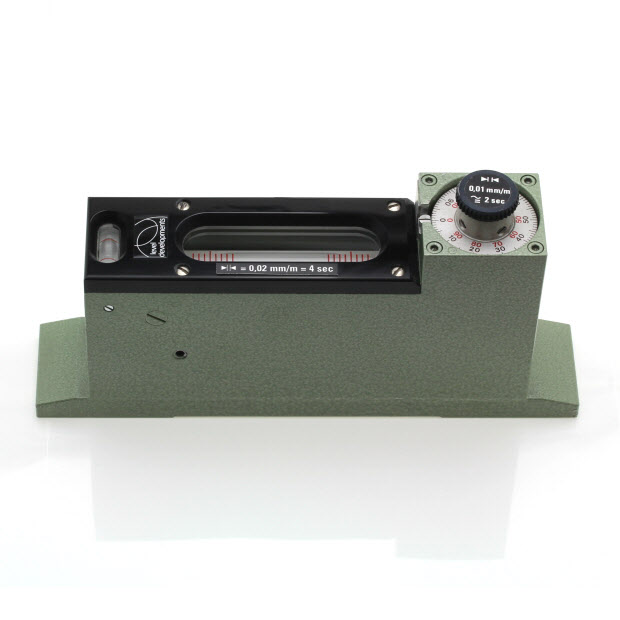

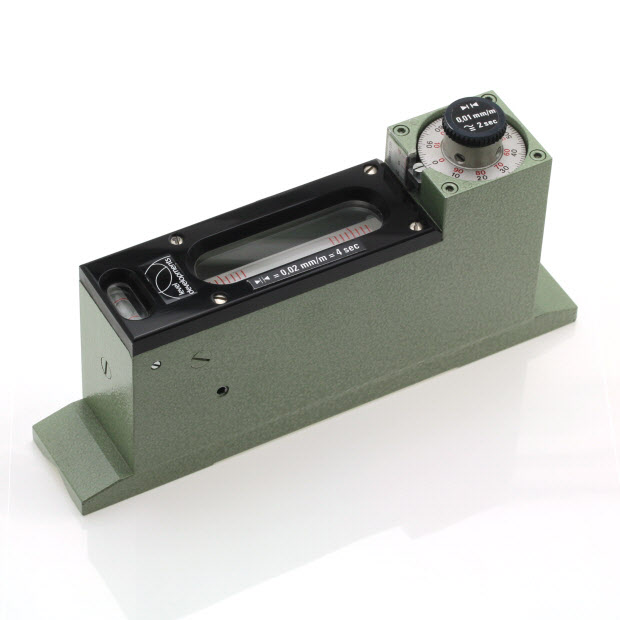

64-0.02-200 – Micrometer Block Level, 200mm long, sens. 0.02mm/m
Features
- Adjustable precision ground glass vials
- Stabilised and hardened cast iron base.

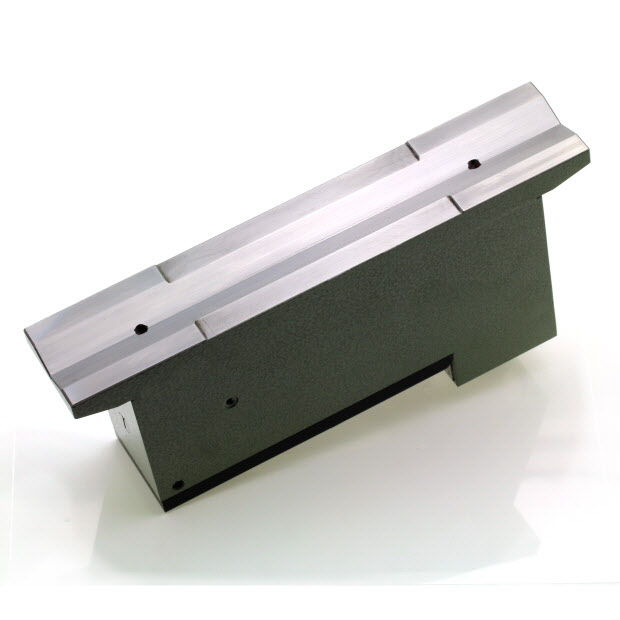

- Precision ground flat and 'V' bearing surfaces
- Micrometer adjustment, 1 division = 0.01mm/m.
- Micrometer range : ±10mm/m
- Vial sensitivity: 1 division = 0.02mm/m.
- Optimum vial quality and bubble size gives fast settling
- Stable over a wide temperature range and highly resistant to shock
- Magnetic base version available on request
- Certification can be supplied to BS958 and DIN877

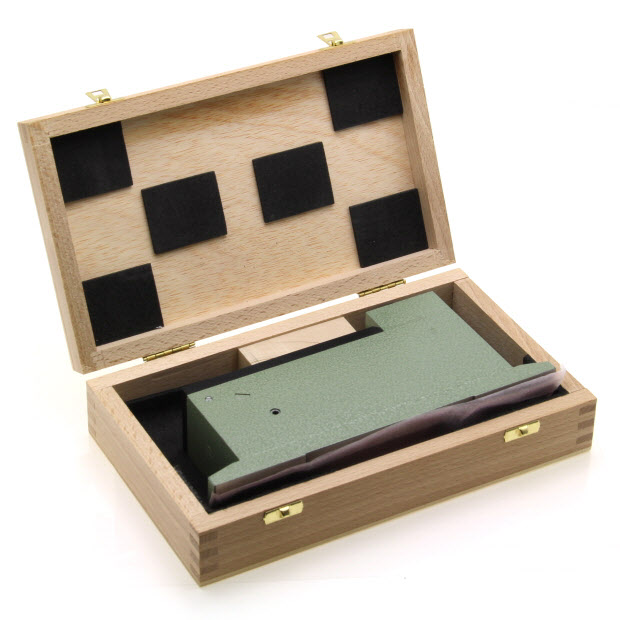

- Protective wooden box with adjustment key
- Repair and re-calibration service available.
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Length | 200 | mm |
| Height | 98 | mm |
| Width | 40 | mm |
| Sensitivity Per Division | 0.02 | mm/m |
| Range | 10mm/m | - |
| Resolution | 0.02mm/m | - |
| Accuracy | 0.01mm/m | - |
| Cross Vial | Yes | - |
| Base Style | Flat and V | - |
| Magnetic | No | - |
| Dimension | Value | Unit |
|---|---|---|
| Length | 200 | mm |
| Width | 40 | mm |
| Height | 98 | mm |
| Weight | 2.5 | Kilograms |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | 0 to 40 | °C |
| Storage Temperature Range | -20 to 65 | °C |
