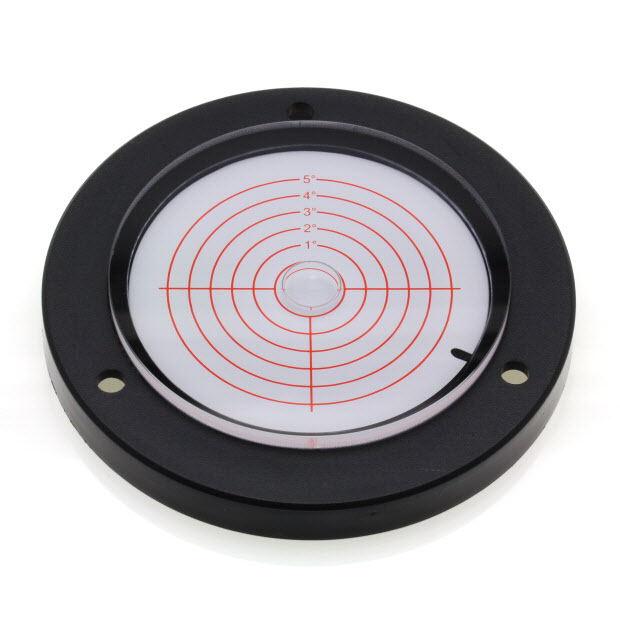

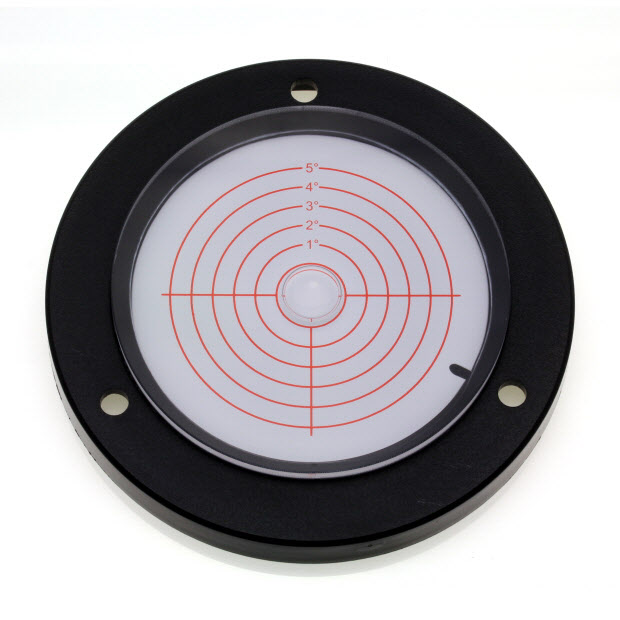

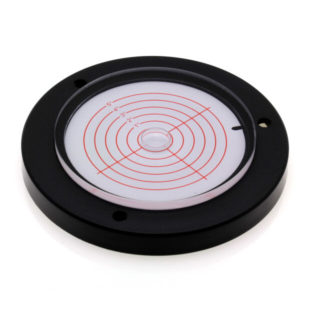

Inclinometers » Circular Inclinometer Levels » AVF100/5 - Plastic circular level, Ø100mm, range ±5°

Product Drawing (pdf 484 kB) AVF100/5 – Plastic circular level, Ø100mm, range ±5°

Features

  • Measure level and angle up to 5°
  • Waterproof finish
  • High strength plastic vial
  • Black base give good bubble contrast

Applications

  • Mobile crane levelling
  • Platform levelling
  • Industrial vehicle levelling

Product Specification

Parameter Value Unit
Diameter 100 mm
Sensitivity 1 degree per 4mm
Vial Material PMMA -
Case Material PC ABS -
Mounting Method Screw down or free standing -
Bubble Size 12.1 mm
Ring Diameter 13 mm
Ring Colour Red -
Liquid Colour Clear -
Dimension Value Unit
Overall Diameter 100 mm
Body Diameter 75 mm
Overall Height 14.5 mm
Flange Height 10 mm
Pitch Centre Diameter For Mounting Holes 85 mm
Hole Diameter 5.2 mm
Weight 84 Grams
Parameter Value Unit
Operational Temperature Range -10 to 50 °C
Storage Temperature Range -20 to 60 °C
