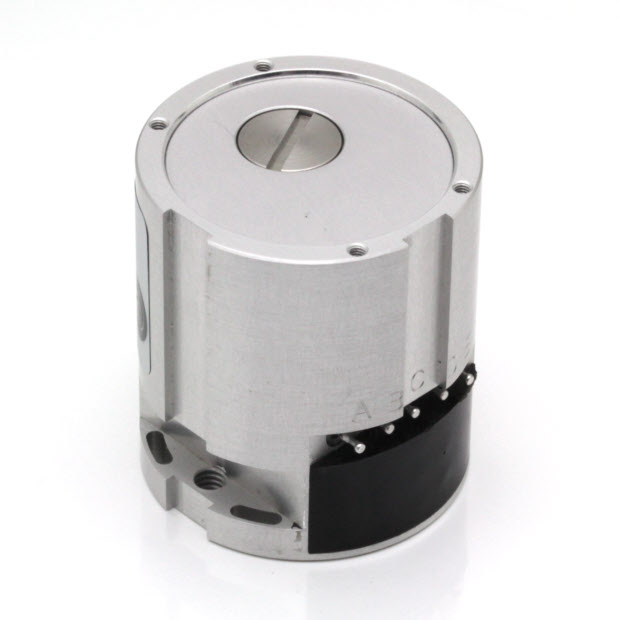

The LSR is a high precision single axis gravity referenced servo inclinometer sensor suitable for both military and industrial applications. They are extremely sensitive and linear devices making them particularly suitable for the precise measurement of angle in high vibration environments. Although single-axis inclinometers, they are stackable for dual axis configuration and can withstand shocks of up to 1500g making them ideal for industrial and military applications.
= sort ascending / descending (hold 'shift' and click another heading for multiple sorting)
| Part No. | Image | Size (LxWxH mm) |
No of Axis | Range (°) |
Output Type | Resolution (°) | Accuracy (°) (20°C) |
Supply Voltage Min - Max (V) |
Seal Rating | Price $ (ex VAT) |
|---|---|---|---|---|---|---|---|---|---|---|
| LSRP-30 |   |
36.3x36.3x40.6 | 1 | ±30 | ±5V | 0.0006 | 0.012 | ±12 - ±18 | IP65 | See details |
| LSRP-90 | |
36.3x36.3x40.6 | 1 | ±90 | ±5V | 0.001 | 0.09 | ±12 - ±18 | IP65 | See details |
| LSRP-3 | |
36.3x36.3x40.6 | 1 | ±3 | ±5V | 0.00011 | 0.003 | ±12 - ±18 | IP65 | See details |
| LSRP-1 | |
36.3x36.3x40.6 | 1 | ±1 | ±5V | 0.00006 | 0.0016 | ±12 - ±18 | IP65 | See details |
| LSRP-14.5 | |
36.3x36.3x40.6 | 1 | ±14.5 | ±5V | 0.0003 | 0.0058 | ±12 - ±18 | IP65 | See details |
