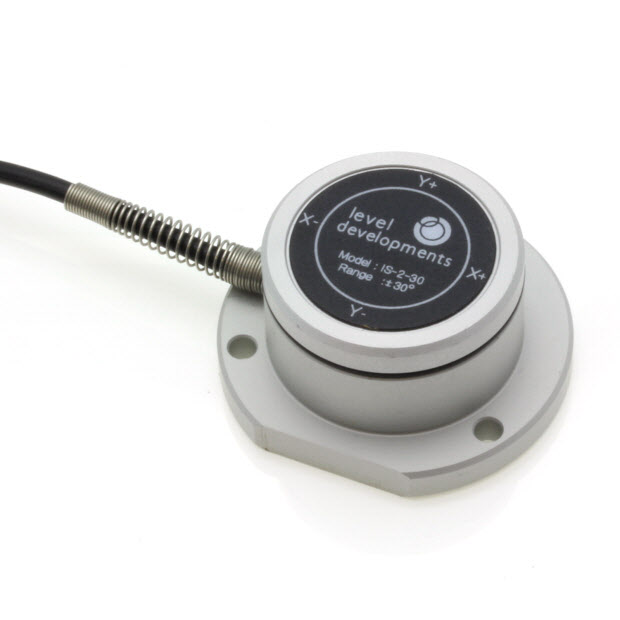

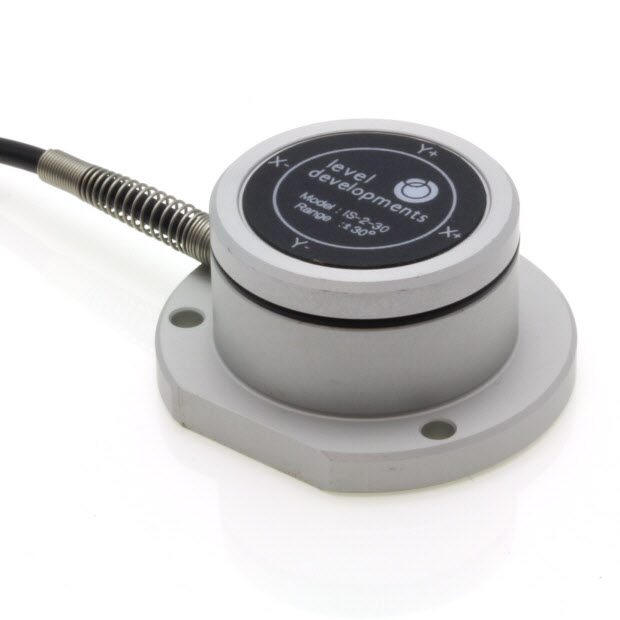

Inclinometers » Inclinometer Sensors » IS-2-30 - Dual axis inclinometer sensor, ±30°, RS232 output

Product Datasheet (pdf 166 kB) Inclinometer Selection Tool IS-2-30 – Dual axis inclinometer sensor, ±30°, RS232 output

Features

  • Dual axis simultaneous measurement
  • High accuracy ±0.05°
  • 0.01° resolution, ±30° range
  • RS232 digital interface
  • Continuous or polled output
  • Sealed Aluminium housing Ø43mm
  • Precision 3D MEMS Sensor

Applications

  • Wind Turbine levelling
  • Platform levelling and monitoring

Product Specification

Parameter Value Unit
Number of Axis: 2 -
Range ±30 °
Resolution 0.01 °
Accuracy at 20°C 0.05° or 1% of reading °
Output Type RS232 -
Output Format 9600, N, 8, 1 -
Technology Precision MEMS -
Maximum Zero Bias Error ±0.05 °
Long Term Drift ±0.05 °
Maximum Devices On Network 1 -
Parameter Value Unit
Supply Voltage (min) 9 V
Supply Voltage (max) 12 V
Supply Current 30 mA

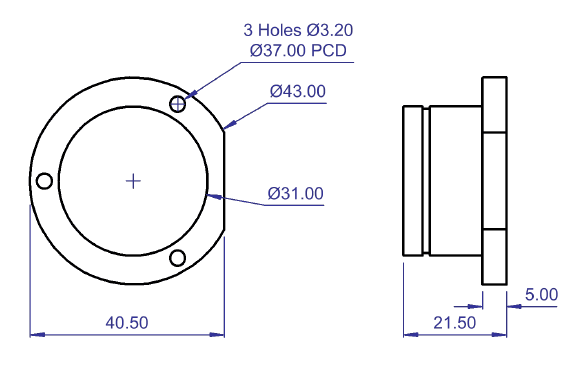

Dimension Value Unit
Sensor Case Material Anodised Aluminium -
Connection Style Cable Gland -
Cable Length 2 m
Length 43 mm
Width 40.5 mm
Height 21.5 mm
Weight 40 Grams
Parameter Value Unit
Operational Temperature Range -20 to 85 °C
Storage Temperature Range -40 to 85 °C
Sensor Seal Rating IP65 -
