Inclinometers » Tilt Switches » ELS-DR-5-0.5-1 - Single axis dual relay tilt switch, adjustable range ±1.8° to ±4.8°, 0.5Hz Filter.

Product Datasheet (pdf 780 KB) ELS-DR-5-0.5-1 – Single axis dual relay tilt switch, adjustable range ±1.8° to ±4.8°, 0.5Hz Filter.

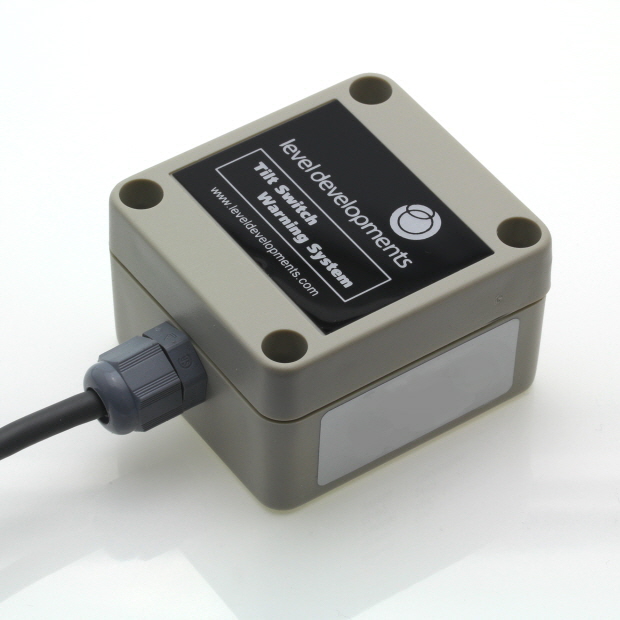

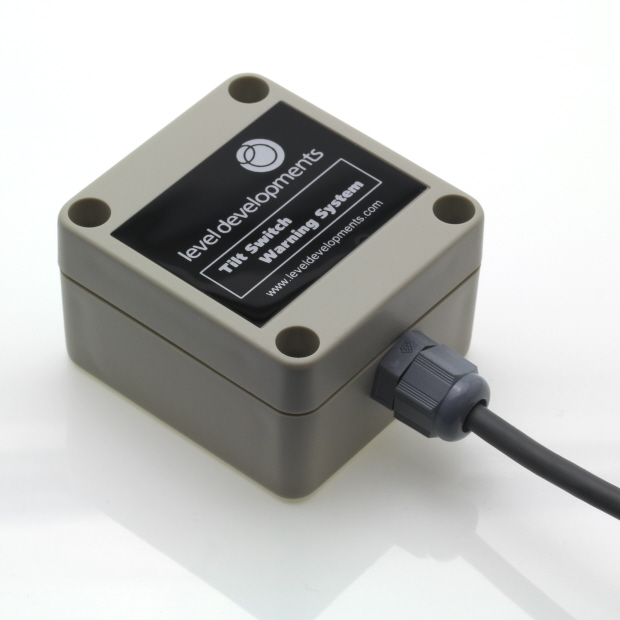

A single axis, dual relay tilt switch with an adjustable switching threshold from ±1.8 to ±4.8 degrees & a 0.5Hz frequency response. Designed with automated levelling systems in mind; relay 1 activates with +ve rotation and relay 2 activates with -ve rotation, both relays deactivate at 0°.

ELS-DR-5-0.5-1 – Single axis dual relay tilt switch, adjustable range ±1.8° to ±4.8°,  0.5Hz Filter.
ELS-DR-5-0.5-1 – Single axis dual relay tilt switch, adjustable range ±1.8° to ±4.8°,  0.5Hz Filter.
12

Features

  • Single axis levelling controller with dual relay output
  • Adjustable switching threshold from 1.8° to 4.8°
  • 'ZERO' button to set zero after installation
  • Small size and low power consumption
  • High precision switching threshold
  • Sealed to IP65 and CE certified

Applications

  • Aerial work platforms
  • Recreational vehicle auto-levelling
  • Roller shutter door controls
  • Container levelling

Product Specification

Parameter Value Unit
Number of Axis Single -
Switching Angle Range - Minimum 1.8 °
Switching Angle Range - Maximum 4.8 °
Output Format 2x Relays -
Inclination Output Format None -
Accuracy at 20°C 0.1 °
Switching Hysteresis 0.2 °
Maximum Mechanical Shock 5000g fro 0.5ms G
Frequency Response 0.5 Hz
Parameter Value Unit
Supply Voltage (min) 8 V
Supply Voltage (max) 35 V
Supply Current 40mA mA
Dimension Value Unit
Sensor Case Material ABS -
Connection Style Pigtail -
Cable Length 2 m
Length 60 mm
Width 88.4 mm
Height 40 mm
Weight 180 Grams
Parameter Value Unit
Operational Temperature Range -40 to 85 °C
Storage Temperature Range -40 to 85 °C
Sensor Seal Rating IP65 -
