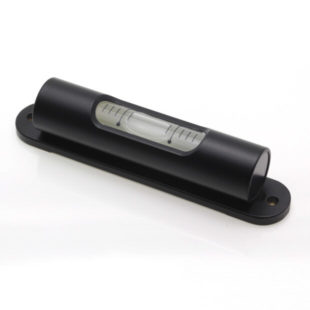

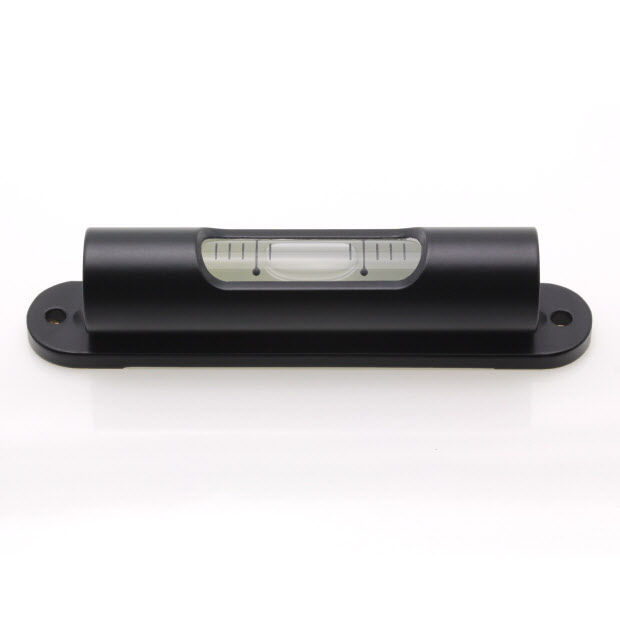

Instrument Levels » Instrument Screw On Levels » TL85 - Plate level, 85mm long, sens. 1'

Product Datasheet (pdf 109 kB) TL85 – Plate level, 85mm long, sens. 1′

Features

  • Precision ground glass vial
  • Sensitivity 1 minute per 2mm bubble movement)
  • Vial constrast lines for improved visibility
  • Precision ground flat base
  • Black anodised aluminium housing

Applications

  • Machine and instrument levelling
  • Platform levelling

Product Specification

Parameter Value Unit
Length 85.5 mm
Height 18.8 mm
Width 15.8 mm
Sensitivity Per Division 1 minute
Division Size mm
Hole Centres 76.2 mm
Hole Diameter 3.1 mm
Magnetic No -
Cross Vial No -
Case Material Aluminium -
Vial Material Glass -
Finish Black anodised -
Liquid Colour Clear -
Light none -

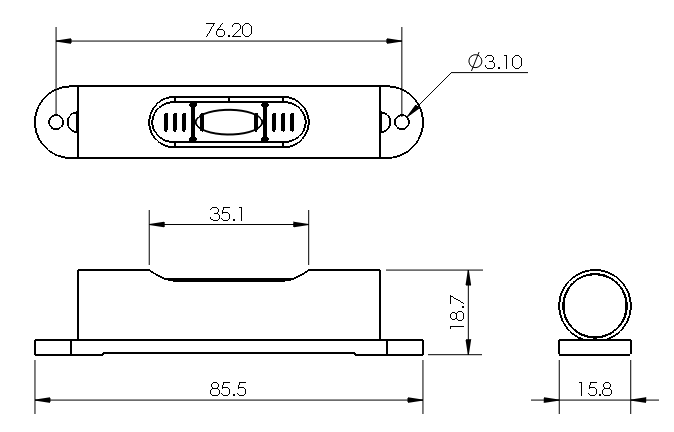

Dimension Value Unit
Length 85.5 mm
Width 15.8 mm
Height 18.8 mm
Weight 74.5 Grams
Parameter Value Unit
Operational Temperature Range -20 to 60 °C
Storage Temperature Range -40 to 70 °C
