Circular Levels » Glass Circular Vials » 5732/1 - Glass Circular vial, Ø15mm x 7mm, ref. 321-70691-01

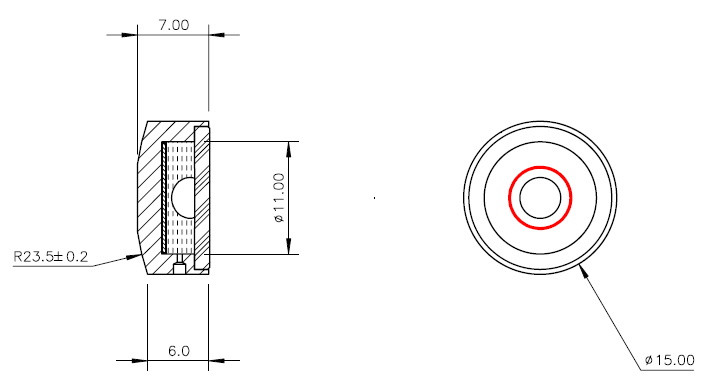

Product Drawing (pdf 64 KB) 5732/1 – Glass Circular vial, Ø15mm x 7mm, ref. 321-70691-01

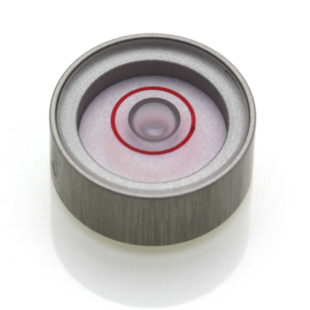

5732/1 – Glass Circular vial, Ø15mm x 7mm, ref. 321-70691-01
1

Features

  • Sensitivity 6.88' per 2mm bubble movement
  • Precision ground glass top lens
  • Clear anodised Aluminium body
  • High contrast bubble gives excellent visibility
  • Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
  • Silver Backing
  • Wide operational temperature range

Product Specification

Parameter Value Unit
Diameter 15 mm
Height 7 mm
Sensitivity 6.88 minutes per 2mm
Backing Colour Silver -
Bubble Size 4 mm
Ring Diameter 6 mm
Ring Colour Red -
Finish Clear Anodised -
Liquid Colour Clear -
Lens Material Glass -
Dimension Value Unit
Diameter 15 mm
Height 7 mm
Weight 2.61 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -30 to 70 °C
