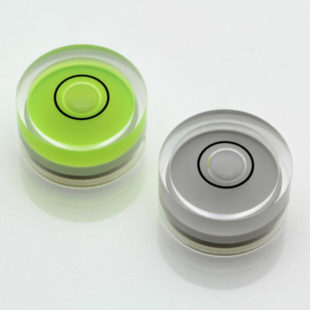

Circular Levels » Plastic Circular Vials » AV18G - Plastic circular vial, Ø18x9mm, Green, 40'/2mm

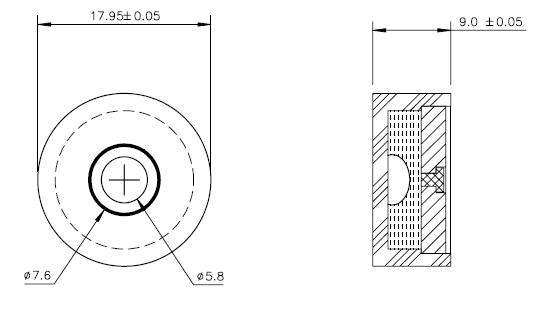

Product Drawing (pdf 77 kB) AV18G – Plastic circular vial, Ø18x9mm, Green, 40’/2mm

Features

  • Acrylic housing, high clarity scratch free PMMA
  • White backing
  • Yellow/Green liquid
  • Sensitivity 40' per 2mm bubble movement
  • Highest quality plastic vial

Applications

  • Camera tripods
  • Weighing scales
  • Compass levelling

Product Specification

Parameter Value Unit
Diameter 18 mm
Height 9 mm
Sensitivity 40 minutes per 2mm
Backing Colour White -
Bubble Size 5.8 mm
Ring Diameter 7.3 mm
Ring Colour Black -
Liquid Colour Yellow/Green -
Dimension Value Unit
Diameter 18 mm
Height 9 mm
Weight 2.01 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
