Circular Levels » Plastic Circular Vials » AV40 - Plastic circular vial, Ø40x10mm, Green, 46'/2mm

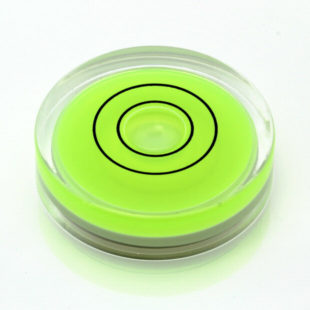

AV40 – Plastic circular vial, Ø40x10mm, Green, 46’/2mm

Features

  • Acrylic housing, high clarity scratch free PMMA
  • White backing
  • Green liquid
  • Sensitivity46' per 2mm bubble movement
  • Highest quality plastic vial

Applications

  • Circular inclinometer levels
  • Vehicle levelling and angle monitoring
  • Crane levelling and angle monitoring

Product Specification

Parameter Value Unit
Diameter 40 mm
Height 10 mm
Sensitivity 46 minutes per 2mm
Backing Colour White -
Bubble Size 10.8 mm
Ring Diameter 12.3/20.3 mm
Ring Colour Black -
Liquid Colour Green -
Dimension Value Unit
Diameter 40 mm
Height 10 mm
Weight 11.7 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
