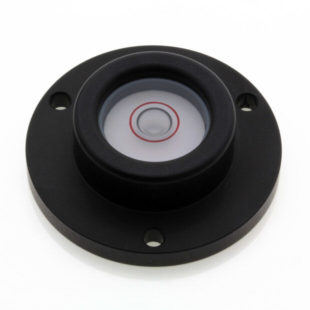

Circular Levels » Surface Mounted Circular Levels » CG40B - Circular level Ø40mm, Black anodised finish, Glass vial

Product Drawing (pdf 69 kB) CG40B – Circular level Ø40mm, Black anodised finish, Glass vial

Features

  • Black Anodised aluminium housing
  • Precision glass vial
  • Sensitivity 12' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 40 mm
Sensitivity 12 minutes per 2mm
Vial Material Glass -
Case Material Aluminium -
Finish Black Anodised -
Mounting Method Screw down or free standing -
Bubble Size 6 mm
Ring Diameter 7.8 mm
Ring Colour Red -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 40 mm
Body Diameter 25 mm
Overall Height 12.5 mm
Flange Height 4 mm
Pitch Centre Diameter For Mounting Holes 34 mm
Hole Diameter 3.1 mm
Weight 19 Grams
Parameter Value Unit
Operational Temperature Range -15 to 65 °C
Storage Temperature Range -40 to 70 °C
