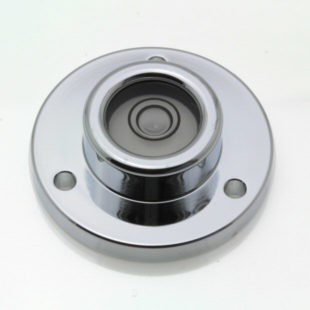

Product Drawing (pdf 99 KB) CP30 – Circular level, Ø30mm, ENP finish, plastic vial
Features
- Nickel Plated aluminium housing
- High quality plastic vial
- Sensitivity 34' per 2mm bubble movemement
- High contrast bubble
- Wide temperature range
Applications
- Precision Instrument Levelling
- High precision weighing scales
- Robotic systems levelling
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 30 | mm |
| Sensitivity | 34 | minutes per 2mm |
| Vial Material | Acrylic (PMMA) | - |
| Case Material | Aluminium | - |
| Finish | Nickel Plated | - |
| Mounting Method | Screw down or free standing | - |
| Bubble Size | 4.8 | mm |
| Ring Diameter | 6.1 | mm |
| Ring Colour | Black | - |
| Liquid Colour | Clear | - |
| Light | none | - |
| Dimension | Value | Unit |
|---|---|---|
| Overall Diameter | 30 | mm |
| Body Diameter | 17 | mm |
| Overall Height | 10 | mm |
| Flange Height | 3.5 | mm |
| Pitch Centre Diameter For Mounting Holes | 24 | mm |
| Hole Diameter | 2.8 | mm |
| Weight | 8.5 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -10 to 60 | °C |
| Storage Temperature Range | -25 to 65 | °C |
