Product Drawing (pdf 993 KB) BI-10 – Ball inclinometer, +/-10 degrees

A high quality ball inclinometer for indicating angle over the range of ±10°. A solid machined aluminium housing gives the unit exceptional strength and durability. The glass vial is manufactured and filled in our clean room and the indicating ball is a precision ground black ceramic ball. The cleanliness of the vial, and the precision ceramic ball ensure the angle is displayed accurately and that the ball does not get stuck and give false readings.

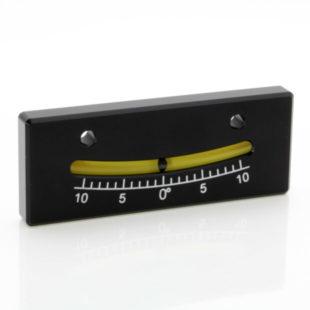

BI-10 – Ball inclinometer, +/-10 degrees

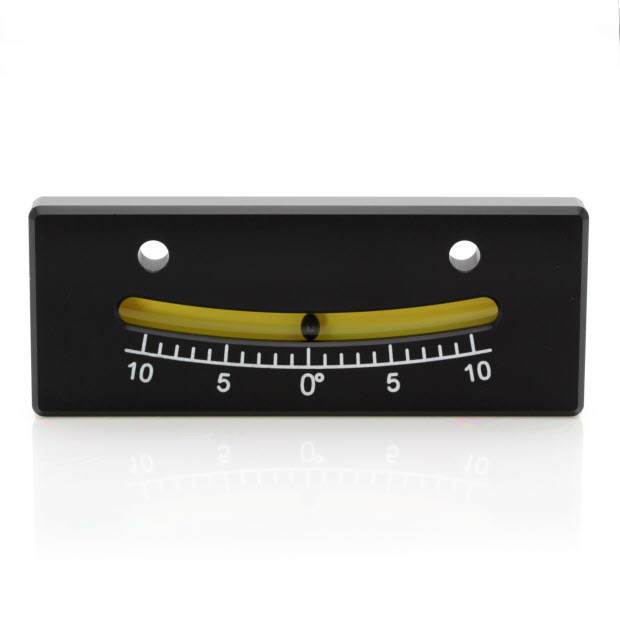

BI-10 – Ball inclinometer, +/-10 degrees


  • Precision vial with black ceramic ball
  • Range ±10°
  • Wide temperature range -20 to 70°C
  • Waterproof with machined Aluminium case


  • Off road vehicle tilt monitoring
  • Grass cutting machinery
  • Excavators and loaders
  • Crane boom angle measurement

Product Specification

Parameter Value Unit
Length 90 mm
Range ±10° -
Resolution -
Accuracy 10% -
Height 9 mm
Width 35 mm
Measuring Type Ball -
Case Material Black anodised Aluminium -
Vial Material Glass -
Mounting Method Screw fixing or VHB tape -
Ball Diameter 3.2 mm
Expansion Chamber No -
Light None -
Dimension Value Unit
Length 90 mm
Width 35 mm
Height 9 mm
Weight 38 Grams
Parameter Value Unit
Operational Temperature Range -20 to 60°C °C
Storage Temperature Range -40 to 60°C °C
