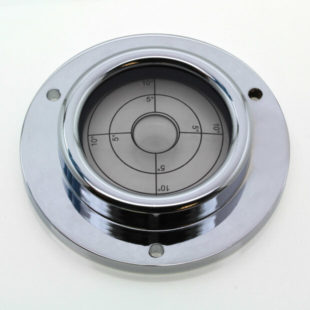

Inclinometers » Circular Inclinometer Levels » CG80/10DEG - Circular level, Ø80mm diameter, range 10°

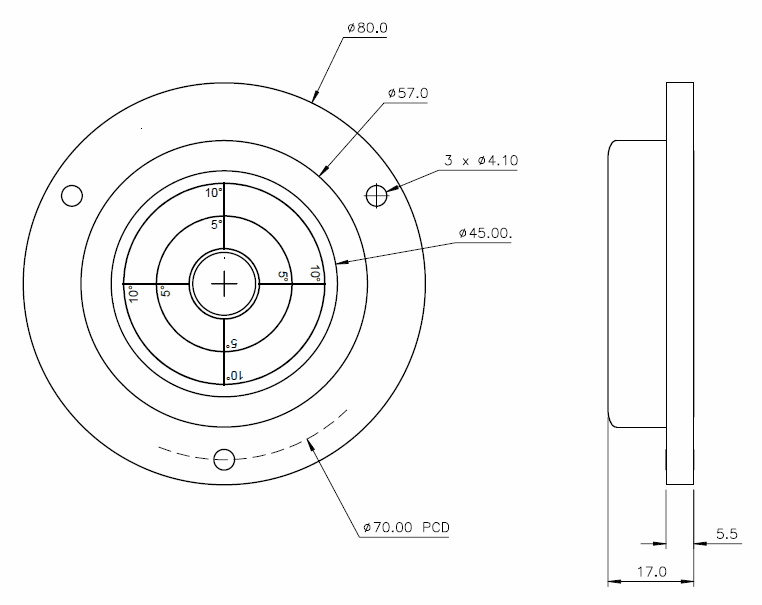

Product Drawing (pdf 116 kB) CG80/10DEG – Circular level, Ø80mm diameter, range 10°

Features

  • Chrome plated aluminium housing
  • Precision glass vial
  • Sensitivity 10° per 6.5mm bubble movement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 80 mm
Sensitivity 10 degrees per 6.5mm
Vial Material Glass -
Case Material Aluminium -
Finish Chrome Plated -
Mounting Method Screw down or free standing -
Bubble Size 13.5 mm
Ring Diameter 14.5 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 80 mm
Body Diameter 57 mm
Overall Height 17 mm
Flange Height 5.5 mm
Pitch Centre Diameter For Mounting Holes 70 mm
Hole Diameter 4.1 mm
Weight 110 Grams
Parameter Value Unit
Operational Temperature Range -15 to 65 °C
Storage Temperature Range -30 to 70 °C
