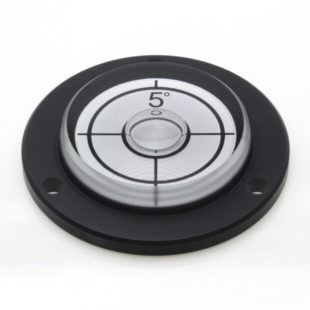

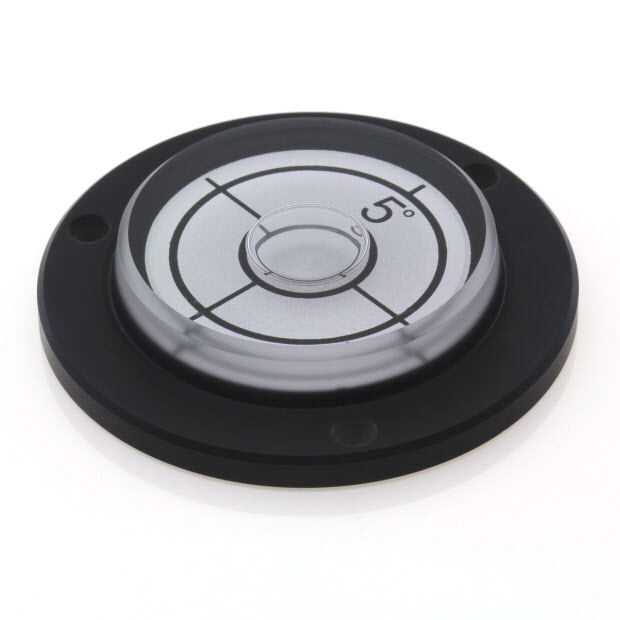

Product Datasheet (pdf 86 KB) PVF55/5 – Circular level, 55mm diameter, range ±5°
Features
- Measure level and angle up to 5°
- Waterproof finish
- High strength plastic vial
- Black base give good bubble contrast
Applications
- Mobile crane levelling
- Platform levelling
- Industrial vehicle levelling
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 55 | mm |
Sensitivity | 5 | degrees per division |
Vial Material | Polycarbonate | - |
Case Material | Polycarbonate | - |
Mounting Method | Screw down or free standing | - |
Bubble Size | 12 | mm |
Ring Diameter | 13 | mm |
Ring Colour | Black | - |
Liquid Colour | Clear | - |

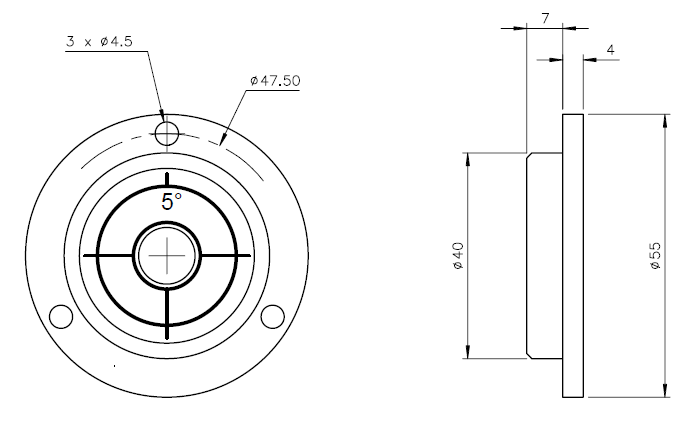

Dimension | Value | Unit |
---|---|---|
Overall Diameter | 55 | mm |
Body Diameter | 40 | mm |
Overall Height | 11 | mm |
Flange Height | 4 | mm |
Pitch Centre Diameter For Mounting Holes | 47.5 | mm |
Hole Diameter | 4.5 | mm |
Weight | 18 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -10 to 60 | °C |
Storage Temperature Range | -20 to 70 | °C |
