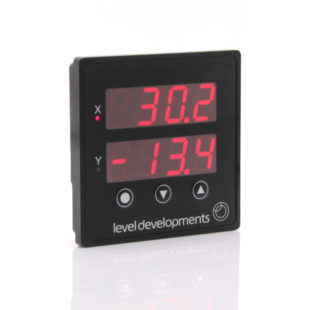

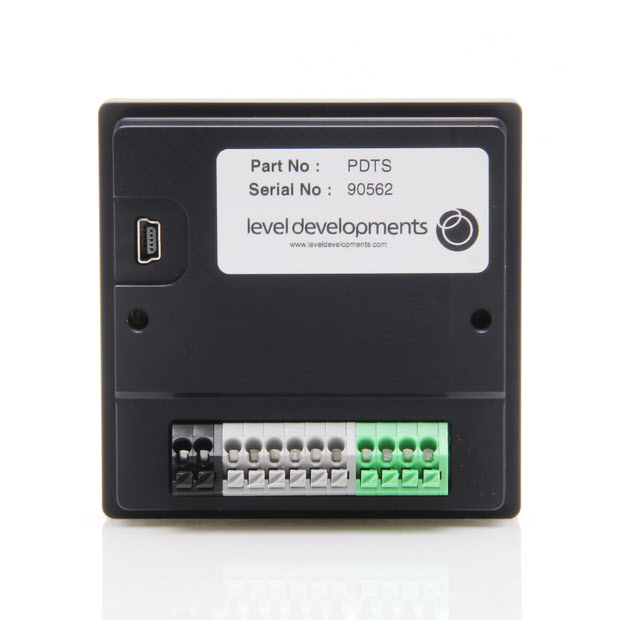

Product Datasheet (pdf 988 KB) PDTS – Low cost dual axis panel mount inclinometer display and tilt switch.
Features

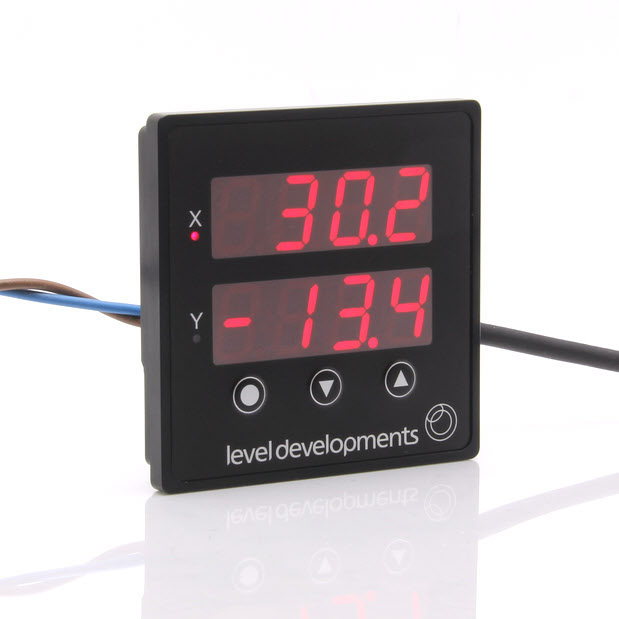

- 4 Digit LED dual axis display. High contrast with wide viewing angle, and adjustable brightness
- Programmable alarm function with 2 individually programmable relay outputs
- Compatible with many of our inclinometer sensors (VS series, SOLAR-2, LCH, HPS)
- Display resolution adjustable with 0,1,2 or 3 decimals
- USB interface with free Windows based application for monitoring angle and configuration

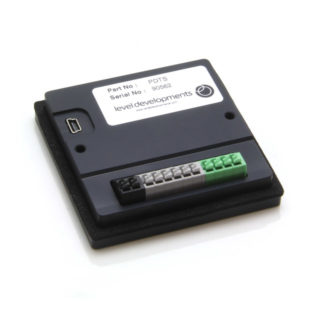

- Sturdy low profile aluminium Housing Designed for panel mounting.
- IP65 sealed from front side when mounted with gasket and clamps supplied.
Product Specification
Parameter | Value | Unit |
---|---|---|
Number of Axis | 2 | - |
Display Type | 2 x 4 digit LED | - |
Display Output | 2 x SPCO Relay and USB | - |
Power Source | External DC supply | - |
Parameter | Value | Unit |
---|---|---|
Supply Voltage (min) | 12 | V |
Supply Voltage (max) | 30 | V |
Dimension | Value | Unit |
---|---|---|
Weight | 200 | Grams |
Display Size | 72x72x19.4 | mm |
Display Weight | 200 | g |
Display Case Material | Anodised Aluminium | - |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -40 to 85°C | °C |
Storage Temperature Range | -40 to 85°C | °C |
Display Seal Rating | IP65 (when panel mounted) | - |
