LC Series

The LC Series of inclinometer sensors are low cost single and dual axis devices supplied in a sealed machined Aluminium housing. They have a digital interface with a full duplex RS232 output for connection directly to a serial port. A USB option is also available, as well as a PCB-only version (part number LCP-45).

= sort ascending / descending (hold 'shift' and click another heading for multiple sorting)

Part No. Image Size
(LxWxH mm)
No of Axis Range
(°)
Output Type Resolution (°) Accuracy (°)
(20°C)
Supply Voltage
Min - Max (V)
Seal Rating Price
$ (ex VAT)
LCH-45 LCH-45 - LC Series
45x46x10.5 2 ±45 RS232 0.05 0.3 4.9 - 15 IP67 From $60.70
Buy
LCH-45-USB LCH-45-USB - LC Series
45x46x10.5 2 ±45 USB 0.05 0.3 15 - 4.9 IP67 From $60.60
Buy

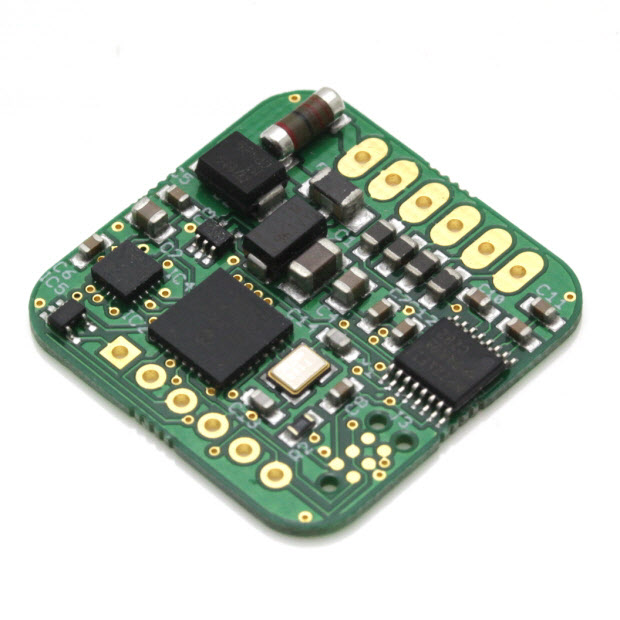

LCP-45 LCP-45 - LC Series
25.4x25.4x4 2 ±45 RS232 0.1 0.5 15 - 3.3 From $33.30
Buy
LCH-A-D-60-10 LCH-A-D-60-10 - LC Series
45x46x10.5 2 ±60 0.5 to 9.5V 0.05 0.3 30 - 13 IP67 From $57.10
Buy
LCH-A-D-45-10 LCH-A-D-45-10 - LC Series
45x46x10.5 2 ±45 0.5 to 9.5V 0.05 0.3 30 - 13 IP67 From $57.10
Buy
LCH-A-D-30-10 LCH-A-D-30-10 - LC Series
45x46x10.5 2 ±30 0.5 to 9.5V 0.05 0.3 30 - 13 IP67 From $57.10
Buy
LCH-A-D-15-10 LCH-A-D-15-10 - LC Series
45x46x10.5 2 ±15 0.5 to 9.5V 0.05 0.3 30 - 13 IP67 From $57.10
Buy
LCH-A-D-10-10 LCH-A-D-10-10 - LC Series
45x46x10.5 2 ±10 0.5 to 9.5V 0.05 0.3 30 - 13 IP67 From $57.10
Buy
LCH-A-D-60-05 LCH-A-D-60-05 - LC Series
45x46x10.5 2 ±60 0.5 to 4.5V 0.05 0.3 30 - 8 IP67 From $57.10
Buy
LCH-A-D-45-05 LCH-A-D-45-05 - LC Series
45x46x10.5 2 ±45 0.5 to 4.5V 0.05 0.3 30 - 8 IP67 From $57.10
Buy
LCH-A-D-30-05 LCH-A-D-30-05 - LC Series
45x46x10.5 2 ±30 0.5 to 4.5V 0.05 0.3 30 - 8 IP67 From $57.10
Buy
LCH-A-D-15-05 LCH-A-D-15-05 - LC Series
45x46x10.5 2 ±15 0.5 to 4.5V 0.05 0.3 30 - 8 IP67 From $57.10
Buy
LCH-A-D-10-05 LCH-A-D-10-05 - LC Series
45x46x10.5 2 ±10 0.5 to 4.5V 0.05 0.3 30 - 8 IP67 From $57.10
Buy
LCH-90-A LCH-90-A - LC Series
45x46x10.5 2 ±90 0.5 to 9.5V 0.05 0.3 30 - 13 IP67 From $57.10
Buy
