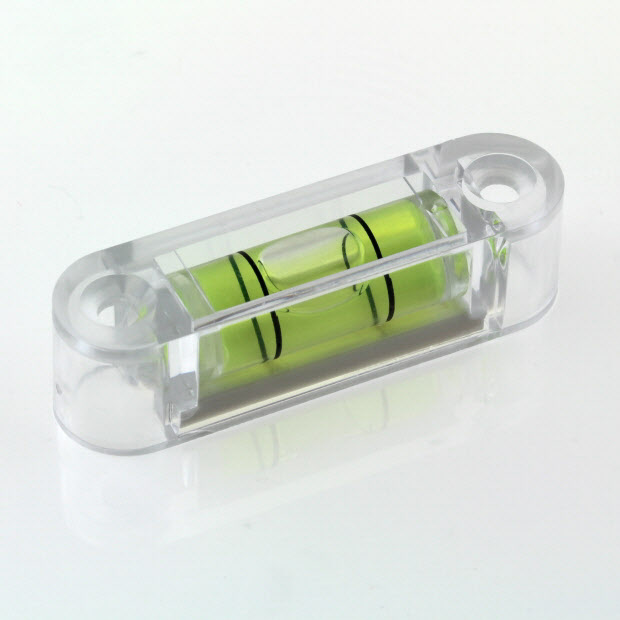

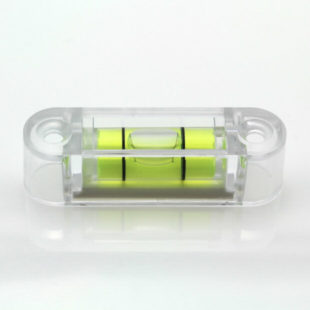

Product Datasheet (pdf 61 kB) SF56 – Acrylic screw on level, 56x15x15mm

Features

  • Two part construction, outer housing with cylindrical vial assembled inside.
  • Low cost
  • Yellow/green filling liquid
  • White backing

Applications

  • Instrument levelling
  • Hand held tools requiring a screw on level

Product Specification

Parameter Value Unit
Length 56 mm
Width 15 mm
Height 15 mm
Sensitivity Per 2mm 30 minutes
Bubble Size 11 mm
Line Spacing 12.5 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour White -

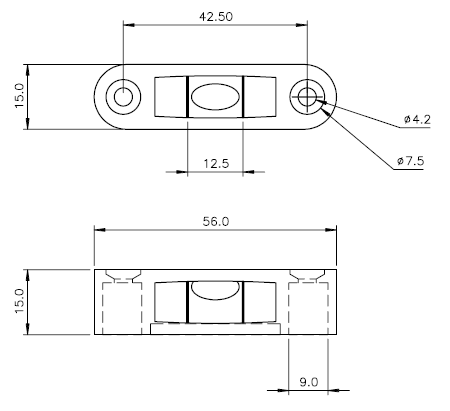

Dimension Value Unit
Length 56 mm
Width 15 mm
Height 15 mm
Hole Centres 42.5 mm
Hole Diameter 4.2 mm
Weight 9.5 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -20 to 65 °C
