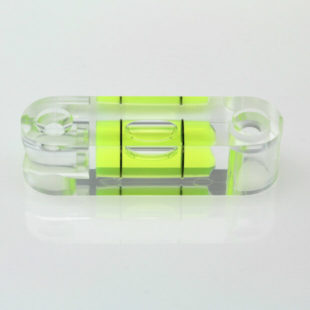

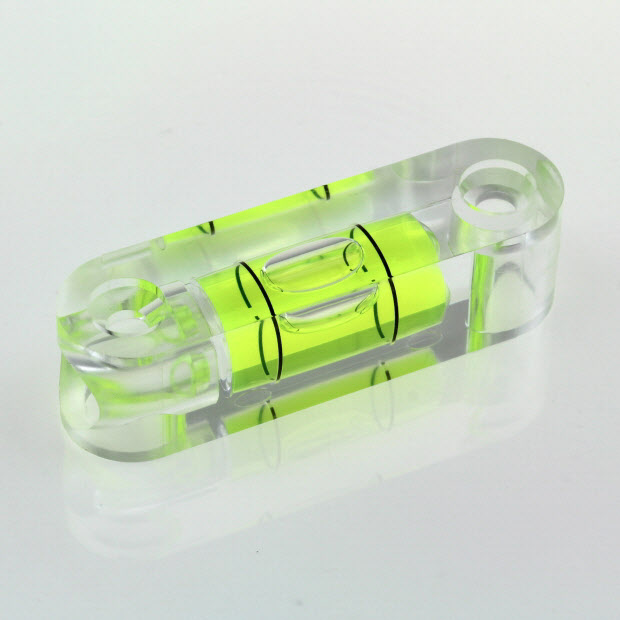

Vials » Plastic Screw On Levels » SF55 - Acrylic screw on level, 55mm long, sensitivity 34'/2mm

Product Datasheet (pdf 131 kB) SF55 – Acrylic screw on level, 55mm long, sensitivity 34’/2mm

Features

  • High quality, high optical clarity plastic
  • CNC machined bore
  • Sensitivity 34'/2mm bubble movement
  • Yellow/Green Filling liquid

Applications

  • Instrument levelling
  • Hand held tools requiring a screw on level

Product Specification

Parameter Value Unit
Length 55 mm
Width 15 mm
Height 15 mm
Sensitivity Per 2mm 34 minutes
Bubble Size 11.5 mm
Line Spacing 12.8 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour Clear -

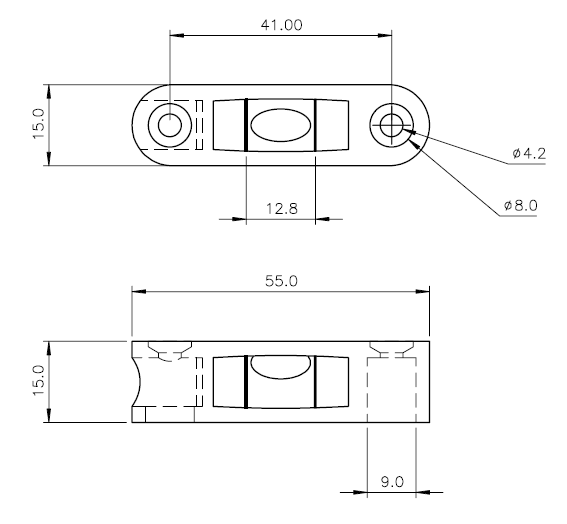

Dimension Value Unit
Length 55 mm
Width 15 mm
Height 15 mm
Hole Centres 41 mm
Hole Diameter 4.2 mm
Weight 10.5 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -20 to 65 °C
