Product Drawing (pdf 46 KB) 5515/101 – Ground opto electronic sensor vial 21 x Ø8mm, sensitivity 5’/2mm
Features
- Precision grinding gives linear bubble movement
- Ultra clean internally to eliminate particulate contamination.
- Very low hysteresis
- Excellent temperature performance
- Automated production and inspection
- Low cost and high performance
Applications
- Self levelling construction laser levels
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 8 | mm |
| Shoulder Length | 21 | mm |
| Overall Length | 24.5 | mm |
| Sensitivity Per 2mm | 5 | minutes |
| Bubble Size | 8.7 | mm |

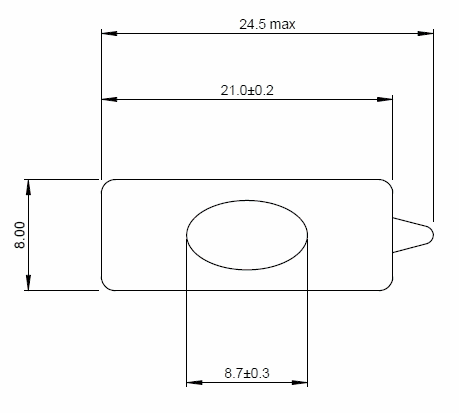

| Dimension | Value | Unit |
|---|---|---|
| Diameter | 8 | mm |
| Shoulder Length | 21 | mm |
| Overall Length | 24.5 | mm |
| Weight | 1.5 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to 70 | °C |
| Storage Temperature Range | -40 to 80 | °C |
