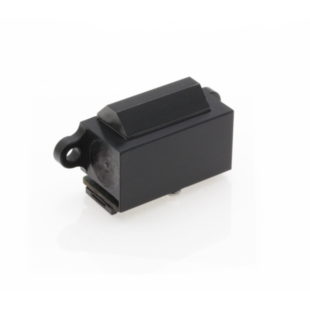

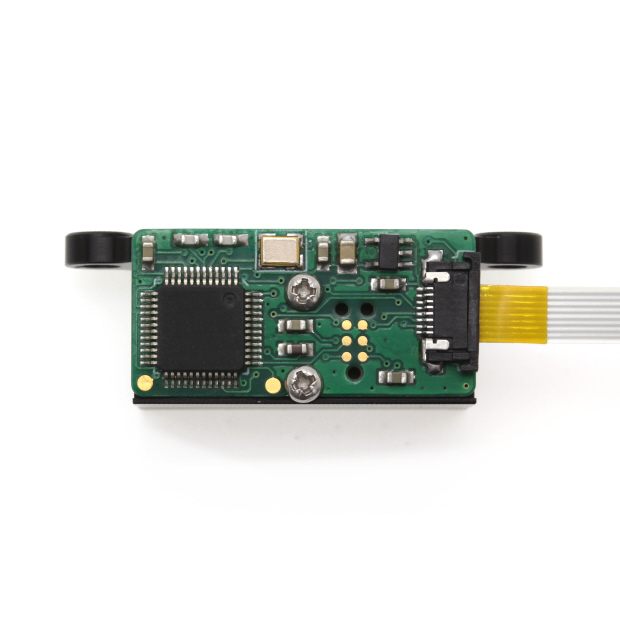

VSM-10-U-V – Vial Sensor Module, 0.1” Resolution, Linear Image, Vertically Mounted
VSM-10-U-V – Vial Sensor Module, 0.1” Resolution, Linear Image, Vertically Mounted
12

Features

  • Ultra-high precision levelling sensor
  • Resolution less than 0.1 arc seconds
  • Extremely low temperature drift (<0.5” per °C)
  • Highly stable over time (<1” in one year)
  • Measurement range ±10 arc minutes
  • On board processor with digital UART interface
  • Highly compact design with simplified mounting
  • Self-levelling performance <2 arc second
  • 20 frames per second sample rate at full power with low power and sleep functions

Product Specification

Parameter Value Unit
Number of Axis: 1 -
Range ±0.167 °
Resolution ±0.000028 °
Accuracy at 20°C 15% of angle °
Output Type UART -
Technology Optical Vial Sensing -
Maximum Zero Bias Error ±0.05 °
Long Term Drift ±0.0002 °
Parameter Value Unit
Supply Voltage (min) 3.3 or 5 V
Supply Voltage (max) 3.3 or 5 V
Supply Current 31 mA
Dimension Value Unit
Sensor Case Material Aluminium -
Connection Style 0.5mm pitch 8 pin FFC -
Length 39.5 mm
Width 14.44 mm
Height 19.8 mm
Weight 10 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 85 °C
