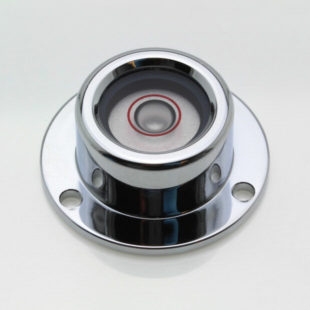

Circular Levels » Surface Mounted Circular Levels » CG27 - Circular level, glass vial, chrome finish, Ø27mm

Product Drawing (pdf 85 kB) CG27 – Circular level, glass vial, chrome finish, Ø27mm

Features

  • Chrome plated aluminium housing
  • Precision glass vial
  • Sensitivity 20' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 26.7 mm
Sensitivity 20 minutes per 2mm
Vial Material Glass -
Case Material Aluminium -
Finish Chrome Plated -
Mounting Method Screw down or free standing -
Bubble Size 4.7 mm
Ring Diameter 6.3 mm
Ring Colour Red -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 26.7 mm
Body Diameter 18.1 mm
Overall Height 10.9 mm
Flange Height 1.5 mm
Pitch Centre Diameter For Mounting Holes 22.86 mm
Hole Diameter 2.5 mm
Weight 6.5 Grams
Parameter Value Unit
Operational Temperature Range -15 to 65 °C
Storage Temperature Range -40 to 70 °C
