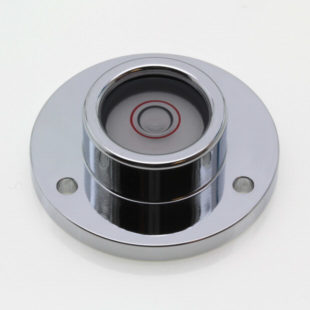

Circular Levels » Surface Mounted Circular Levels » CG35 - Circular level, glass vial, chrome, Ø35mm, 10'/2mm

Product Drawing (pdf 62 kB) CG35 – Circular level, glass vial, chrome, Ø35mm, 10’/2mm

Features

  • Chrome plated aluminium housing
  • Precision glass vial
  • Sensitivity 10' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 35 mm
Sensitivity 10 minutes per 2mm
Vial Material Glass -
Case Material Aluminium -
Finish Chrome Plated -
Mounting Method Screw down or free standing -
Bubble Size 5 mm
Ring Diameter 7.3 mm
Ring Colour Red -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 35 mm
Body Diameter 20 mm
Overall Height 11.5 mm
Flange Height 3.5 mm
Pitch Centre Diameter For Mounting Holes 28 mm
Hole Diameter 2.8 mm
Weight 12 Grams
Parameter Value Unit
Operational Temperature Range -15 to 65 °C
Storage Temperature Range -40 to 70 °C
