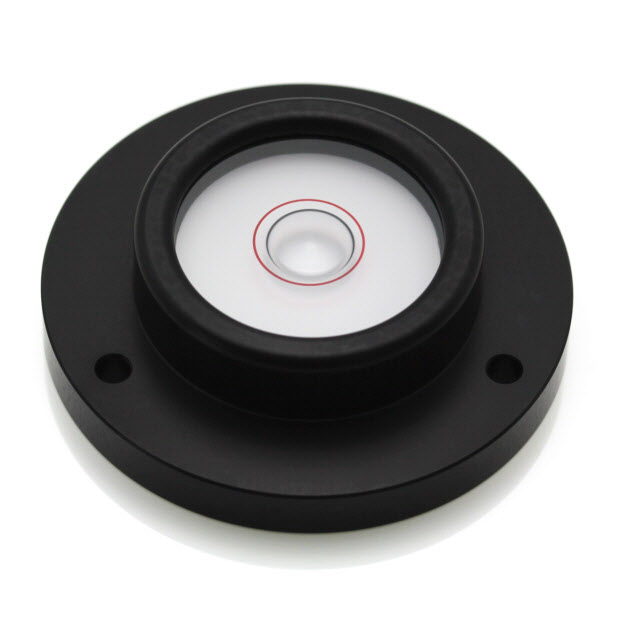

Product Datasheet (pdf 218 kB) CG60B – Circular level, glass vial, Black anodised finish, Ø60mm

Features

  • Black Anodised aluminium housing
  • Precision glass vial
  • Sensitivity 10' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 60 mm
Sensitivity 10 minutes per 2mm
Vial Material Glass -
Case Material Aluminium -
Finish Black Anodised -
Mounting Method Screw down or free standing -
Bubble Size 10 mm
Ring Diameter 12.8 mm
Ring Colour Red -
Liquid Colour Clear -
Light none -

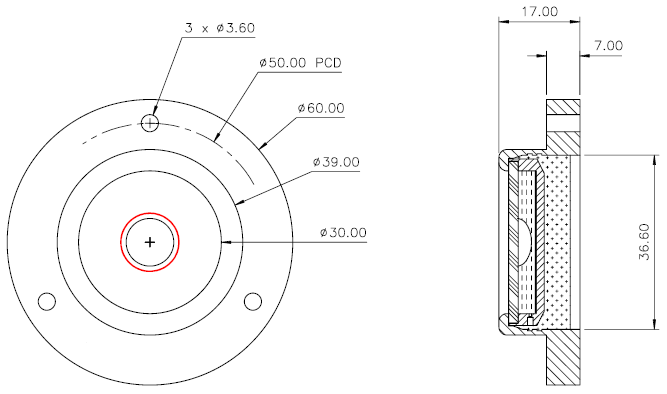

Dimension Value Unit
Overall Diameter 60 mm
Body Diameter 39 mm
Overall Height 17 mm
Flange Height 7 mm
Pitch Centre Diameter For Mounting Holes 50 mm
Hole Diameter 3.6 mm
Weight 60 Grams
Parameter Value Unit
Operational Temperature Range -15 to 65 °C
Storage Temperature Range -30 to 70 °C
