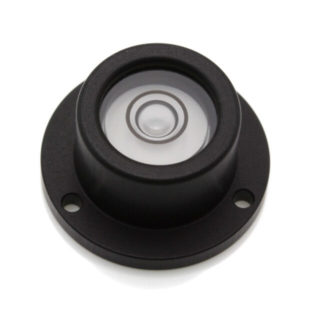

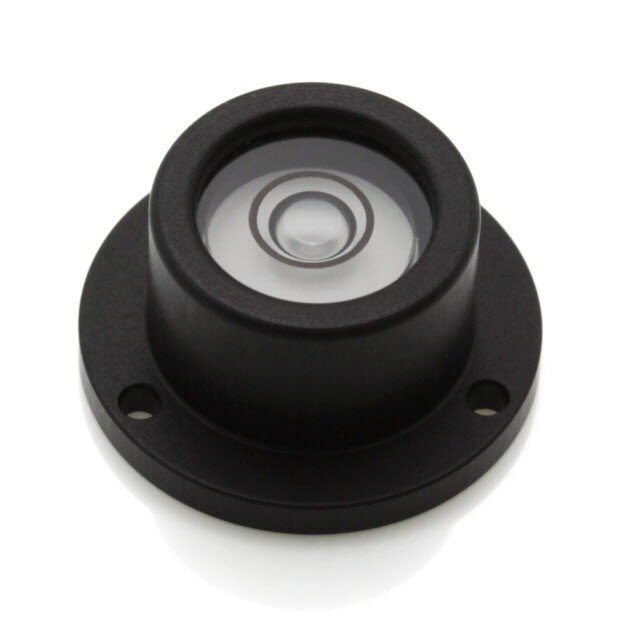

Product Drawing (pdf 158 KB) CP20B – Circular level, Ø20mm, black finish, plastic vial
Features
- Black Anodised aluminium housing
- High quality plastic vial
- Sensitivity 53' per 2mm bubble movemement
- High contrast bubble
- Wide temperature range
Applications
- Precision Instrument Levelling
- High precision weighing scales
- Robotic systems levelling
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 20 | mm |
Sensitivity | 53 | minutes per 2mm |
Vial Material | Acrylic (PMMA) | - |
Case Material | Aluminium | - |
Finish | Black Anodised | - |
Mounting Method | Screw down or free standing | - |
Bubble Size | 3.7 | mm |
Ring Diameter | 5.3 | mm |
Ring Colour | black | - |
Liquid Colour | Clear | - |
Light | none | - |
Dimension | Value | Unit |
---|---|---|
Overall Diameter | 20 | mm |
Body Diameter | 14 | mm |
Overall Height | 10 | mm |
Flange Height | 2 | mm |
Pitch Centre Diameter For Mounting Holes | 17 | mm |
Hole Diameter | 1.8 | mm |
Weight | 5 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -10 to 60 | °C |
Storage Temperature Range | -25 to 65 | °C |
