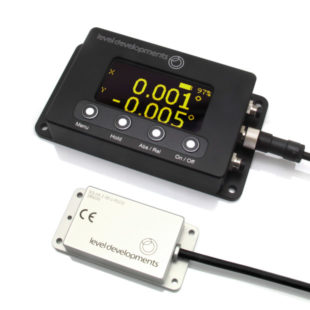

IDS-SOLAR2 – Dual Axis ±30° SOLAR Inclinometer with OLED Display System

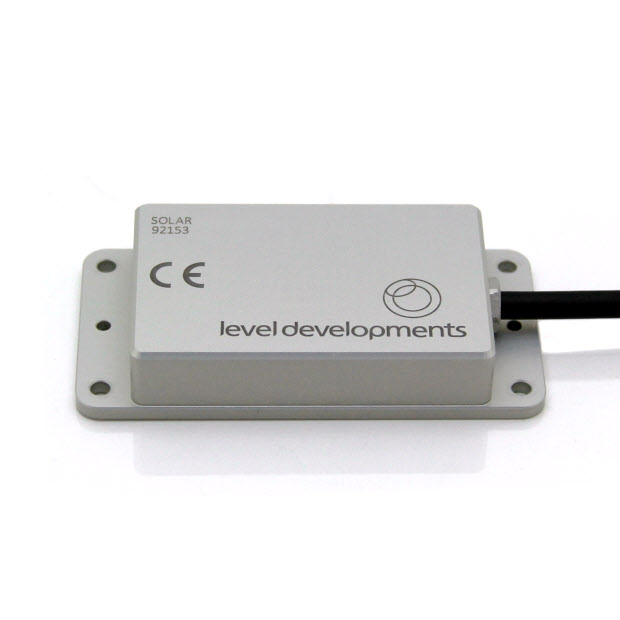

The IDS-SOLAR-2-30 is a dual axis inclinometer sensor with a high-quality, OLED display system for displaying angle in single axis, dual axis and graphical measurement modes. The sensor uses a high performance MEMS sensor to measure angles in both the pitch and roll axes, exhibiting low long term drift and a wide temperature range. The devices are manufactured and calibrated in our UK factory to ensure high-quality.
Features
- Dual axis measurement range: ±30°
-
Solid state, high performance MEMS sensor
-
Low temperature drift
-
Easy to set and store zero posion
-
Configurable RS22 interface
-
Li-Po Battery powered with mains charger
-
Single axis, dual axis and graphical display modes
-
OLED display, high contrast with wide viewing angle
-
Temperature Range -40 to +85°C (without battery)
-
Tough sealed IP67 aluminium housings
-
ROHS and CE Compliant
Product Specification
Parameter |
Value |
Unit |
Number of Axis |
2 |
- |
Range |
±30 |
° |
Resolution |
0.001 |
° |
Accuracy at 20°C |
±0.030° |
° |
Uncompensated Temp Error |
0.0015 |
° / °C |
Accuracy at -20 - 70°C |
±0.120 |
° |
Display Type |
OLED |
- |
Display Output |
RS232 |
- |
Output Format |
RS232 |
- |
Power Source |
Internal Li-Po Battery, or external |
- |
Frequency Response |
1 |
Hz |
Technology |
MEMS |
- |
Parameter |
Value |
Unit |
Supply Voltage (min) |
12 |
V |
Supply Voltage (max) |
30 |
V |
Supply Current |
50 |
mA |
Battery Life |
30 |
Hours |
Dimension |
Value |
Unit |
Weight |
425 |
g |
Sensor Size |
75x37.5x15 |
mm |
Sensor Weight |
45 |
g |
Sensor Case Material |
Anodised Alumimiun |
- |
Display Size |
130x72x26.5 |
mm |
Display Weight |
380 |
g |
Display Case Material |
Anodised Aluminium |
- |
Cable Length |
3 |
m |
Parameter |
Value |
Unit |
Operational Temperature Range |
-40 to 85 (without Li-Po Battery) |
°C |
Storage Temperature Range |
-40 to 85 (without Li-Po Battery) |
°C |
Sensor Seal Rating |
IP67 |
- |
Display Seal Rating |
IP67 |
- |
