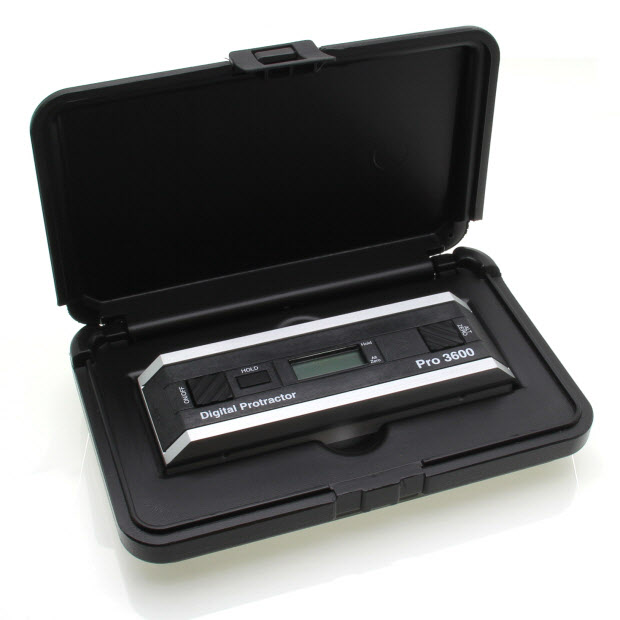

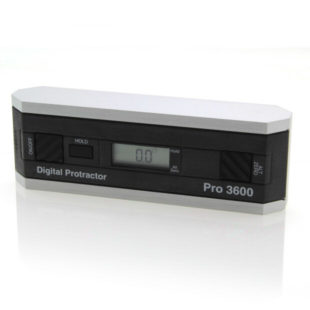

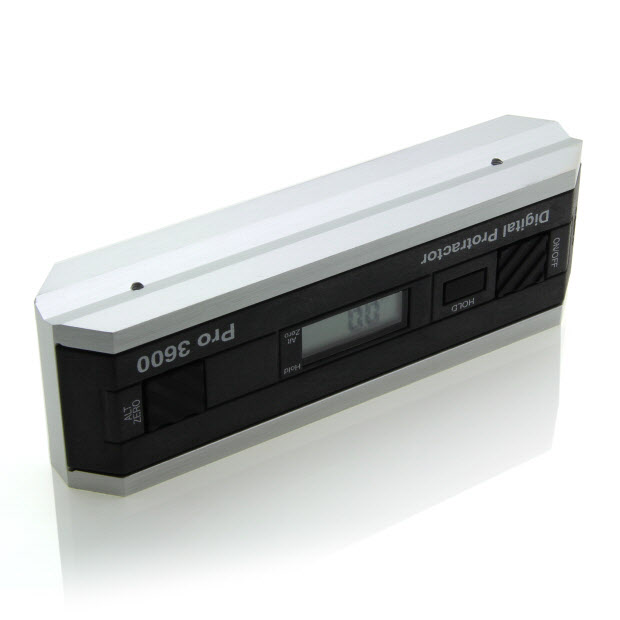

PRO3600 – Digital protractor, range 360°, resolution 0.01°
PRO3600 – Digital protractor, range 360°, resolution 0.01°
PRO3600 – Digital protractor, range 360°, resolution 0.01°
123

Features

  • Give a direct readout of angle over a full 360°
  • 'ALT ZERO' button for differential readings
  • 'HOLD' button to freeze reading
  • User recalibration procedure
  • RS232 Interface

Applications

  • Drive shaft alignment
  • Drainage angles and run off slopes
  • Platform monitoring and machine tool setting

Product Specification

Parameter Value Unit
Number of Axis 1 -
Range 360 °
Resolution 0.01 (0-10°) 0.1 (10-90°) °
Accuracy at 20°C ±0.05 Level, ±0.1 Plumb, ±0.2 Other °
Display Type LCD -
Display Output RS232 -
Output Format 9600, 8, N, 1 -
Power Source PP3 (9V) Battery -
Frequency Response 0.5 Hz
Technology Liquid filled capacitive -
Parameter Value Unit
Battery Life 500 Hours
Dimension Value Unit
Weight 295 Grams
Sensor Size - mm
Display Size 153x48.3x31 mm
Display Weight 295 g
Display Case Material Anodised Aluminium -
Parameter Value Unit
Operational Temperature Range 5 to 50 °C
Storage Temperature Range -20 to 65 °C
Sensor Seal Rating - -
Display Seal Rating IP54 -
