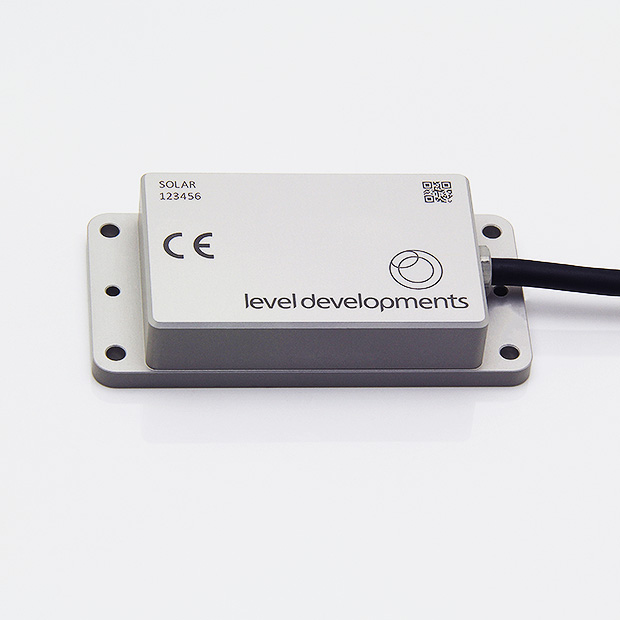

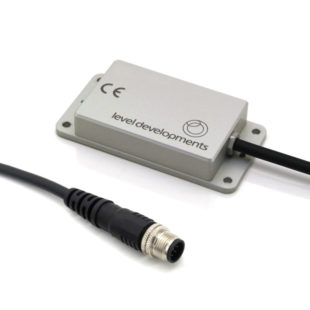

SOLAR-2-30-2-RS485 – Dual Axis Inclinometer, ±30°, RS485 Interface, with Temperature Compensation

A dual-axis 30-degree inclinometer with RS485 interface and temperature compensation.

SOLAR-2-30-2-RS485 – Dual Axis Inclinometer, ±30°, RS485 Interface, with Temperature Compensation 1
SOLAR-2-30-2-RS485 – Dual Axis Inclinometer, ±30°, RS485 Interface, with Temperature Compensation 2
SOLAR-2-30-2-RS485 – Dual Axis Inclinometer, ±30°, RS485 Interface, with Temperature Compensation 3
123

Features

  • Dual axis measurement range ±30°
  • High resolution and accuracy
  • Temperature compensated over -10 to 60°C
  • RS485 interface with LD communication protocol
  • Tough sealed anodised aluminium housing (IP67)
  • CE certified and RoHS compliant.
  • Braided screen 4 core 2m PUR cable
  • Small size, 75 x 37.5 x 15mm and light weight

Product Specification

Parameter Value Unit

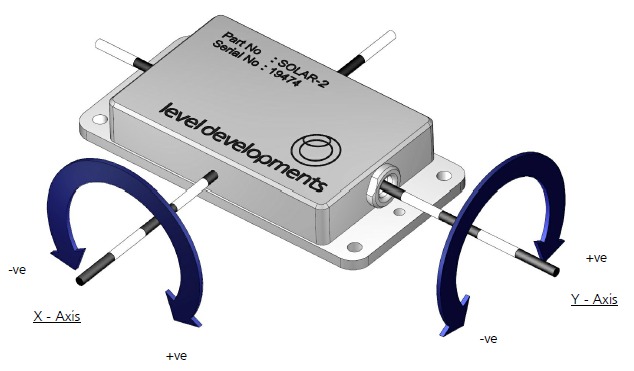

Number of Axis: 2 -
Range ±30 °
Resolution 0.001 °
Accuracy at 20°C 0.030 °
Output Type RS485 -
Output Format 38400,8,1,n -
Technology Precision MEMS -
Maximum Zero Bias Error 0.015 °
Long Term Drift 0.007 °
Compensated Temp Error 0.0003 ° / °C

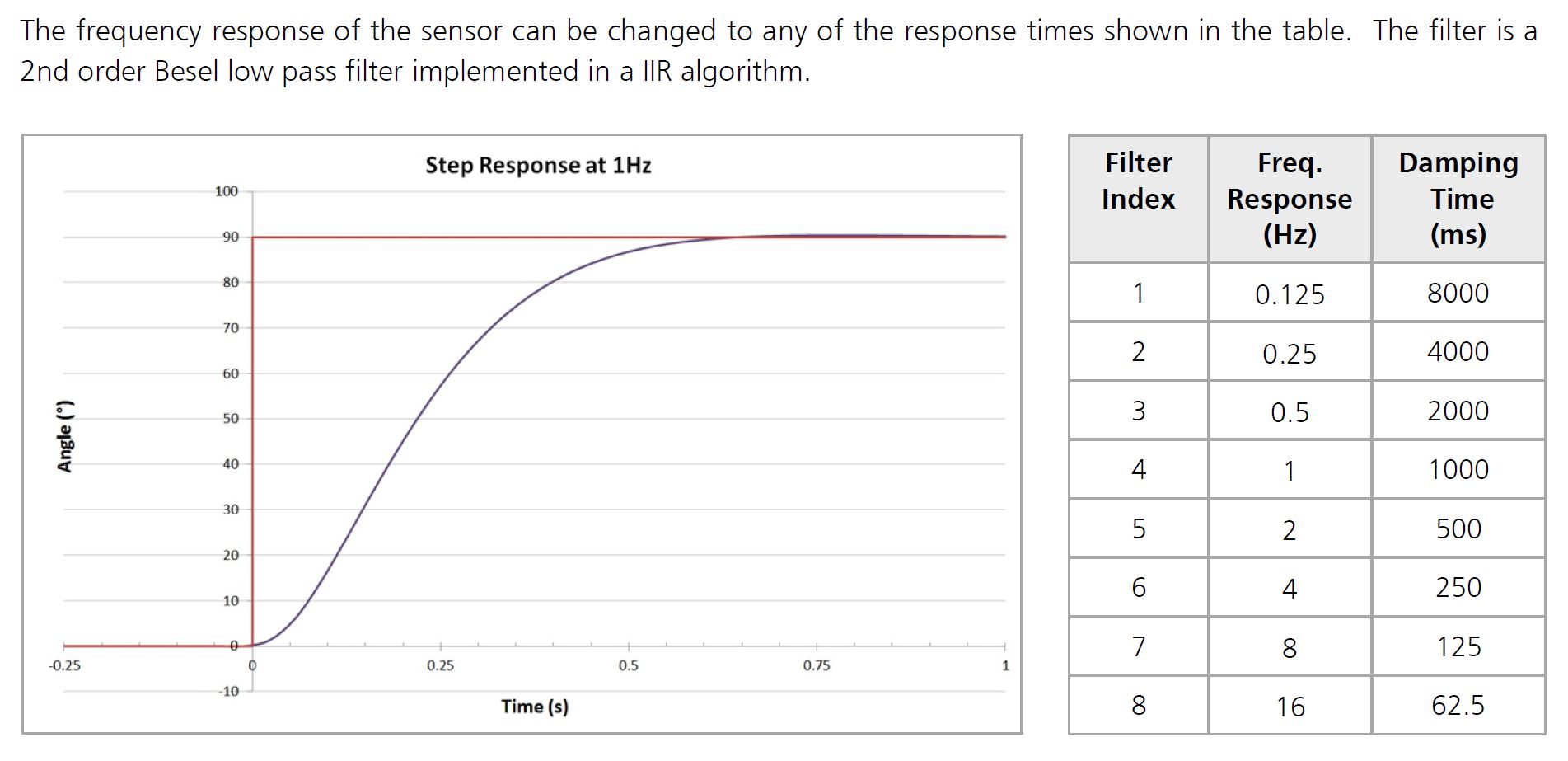

Low Pass Filter Frequency 0.125 to 16 Hz
Maximum Devices On Network 1 -
Parameter Value Unit
Supply Voltage (min) 9 V
Supply Voltage (max) 30 V
Supply Current 10 to 30 depending on supply Vin mA
Dimension Value Unit
Sensor Case Material Anodised Aluminium -

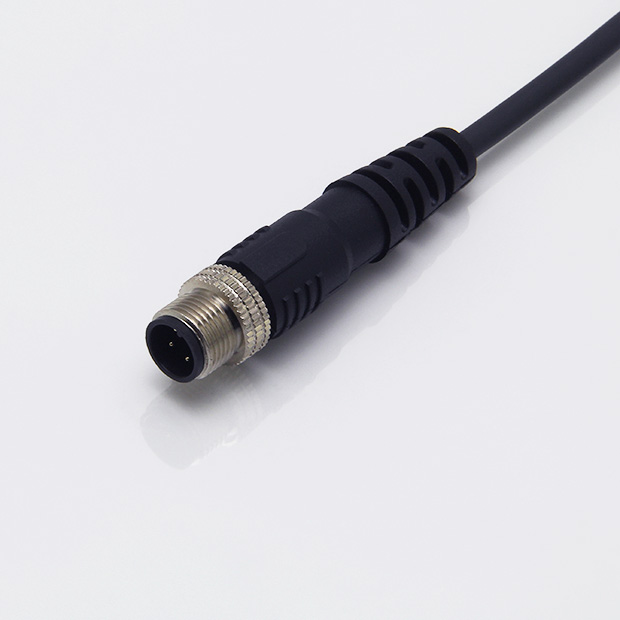

Connection Style 4-pin M12 male -
Cable Length 2 m

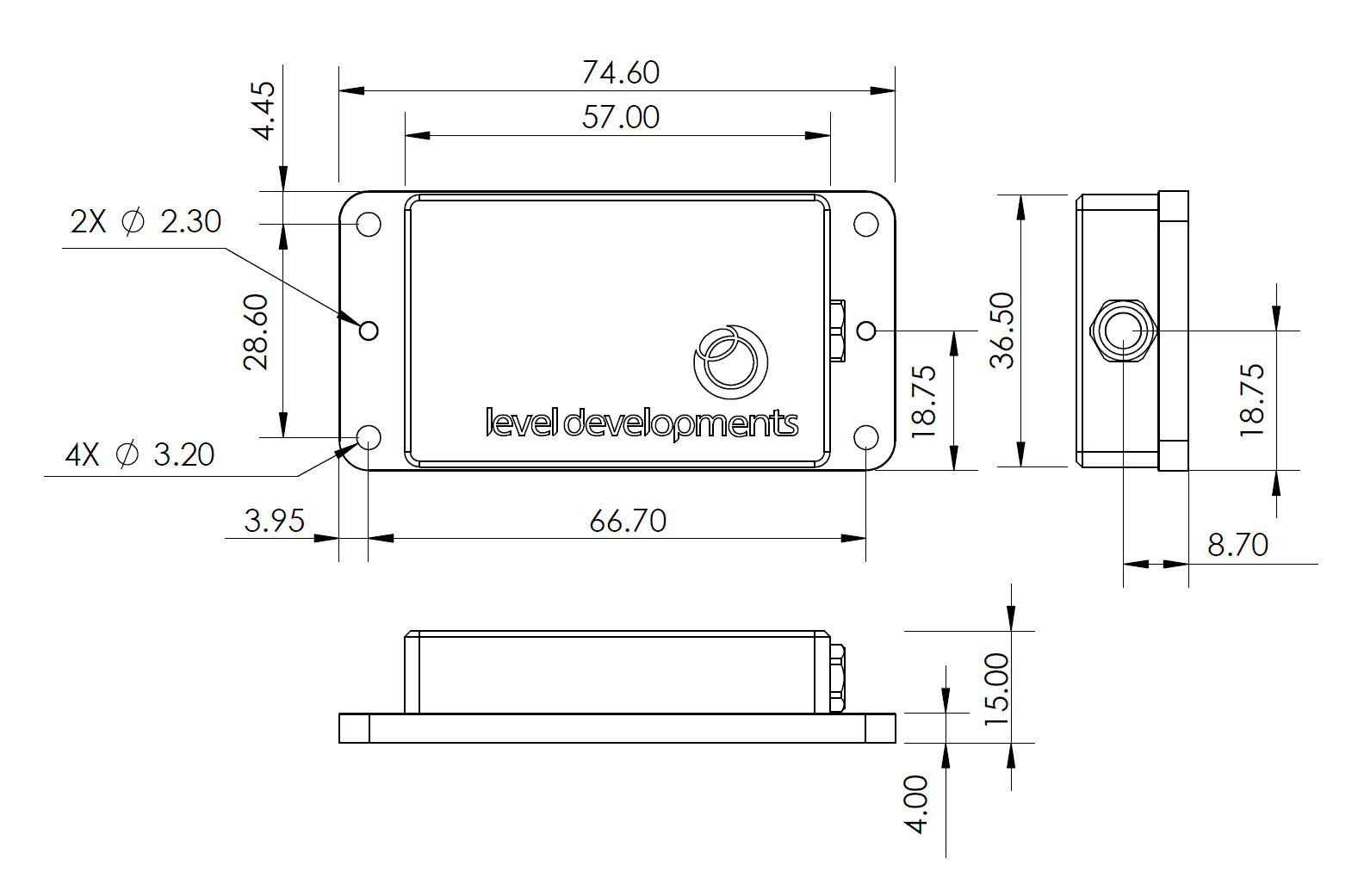

Length 74.6 mm
Width 37.5 mm
Height 15 mm
Weight 45 g
Parameter Value Unit
Operational Temperature Range -40 to 85 °C
Storage Temperature Range -40 to 85 °C
Sensor Seal Rating IP67 -
