Product Datasheet (pdf 470 KB) Inclinometer Selection Tool MAS-360-2-CANJ – Single axis inclinometer sensor, ±180°, CAN J1939 interface
The MAS-360 is a low cost single axis inclinometer sensor supplied in a sealed anodised Aluminium housing. It has a CAN digital interface with J1939 protocol. The devices are individually calibrated to minimise non-linearity errors, cross axis, zero bias and temperature related errors.
Features
- CAN Bus interface with SAE J1939 protocol

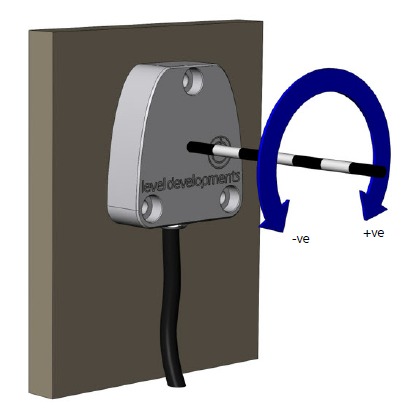

- Single axis measurement range ±180°
- Anodised Aluminium housing, IP67 / IP69K rated
- Dual redundant sensors with accuracy to ±0.1°
Applications
- Mobile crane boom angle measurement
- Excavator boom, dipper and bucket monitoring
- Telescopic and scissor lift boom monitoring
- Cradle monitoring and feedback control
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Number of Axis: | 1 | - |
| Range | ±180 | ° |
| Resolution | 0.01 | ° |
| Accuracy at 20°C | 0.1 | ° |
| Output Type | CAN J1939 | - |
| Output Format | SAE J1939 | - |
| Technology | MEMS | - |
| Maximum Zero Bias Error | 0.1 | ° |
| Compensated Temp Error | 0.002 | ° / °C |
| Accuracy at 0 - 50°C | 0.2 | ° |
| Frequency Response | 1 | Hz |
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage (min) | 6.5 | V |
| Supply Voltage (max) | 36 | V |
| Supply Current | 20mA | mA |
| Dimension | Value | Unit |
|---|---|---|
| Sensor Case Material | Anodised Aluminium | - |
| Connection Style | Deutsch DT04-4P | - |
| Cable Length | 0.3 | m |
| Length | 44 | mm |
| Width | 41 | mm |
| Height | 12.5 | mm |
| Weight | 60 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -40 to 85 | °C |
| Storage Temperature Range | -40 to 85 | °C |
| Sensor Seal Rating | IP67 & IP69K | - |
Similar Products
From $99.80
Buying Information
| Volume | Unit Price | inc VAT |
|---|---|---|
| 1 - 4 | $174.50 | £166.20 |
| 5 - 9 | $120.50 | £114.72 |
| 10 - 24 | $99.80 | £95.04 |
| 25+ | POA | POA |
Quantity
Minimum order quantity:
1
Not available for supply from stock. Available for despatch in 20 days
For product queries, higher volume orders or custom OEM manufacture:
[email protected] +44 (0)20 8684 1400
Or use our contact form here
(Part Number for reference: MAS-360-2-CANJ)
