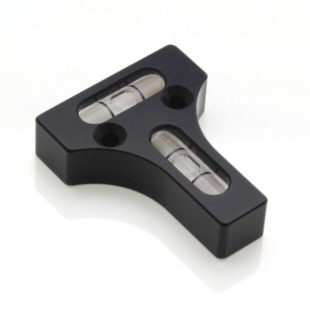

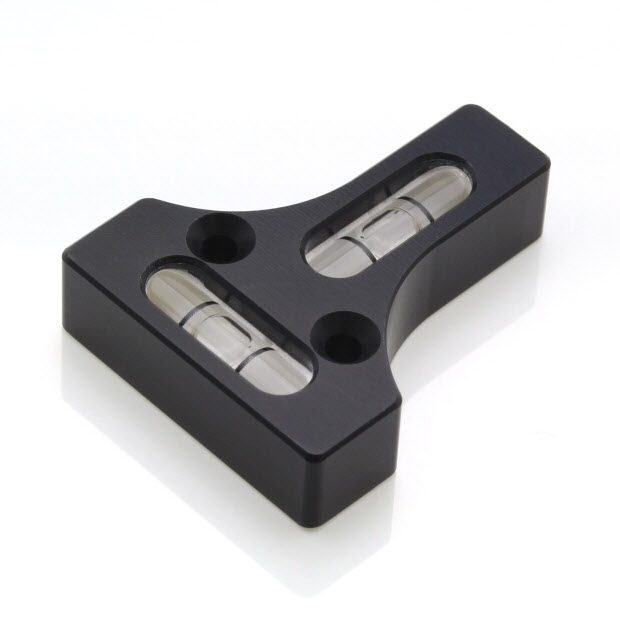

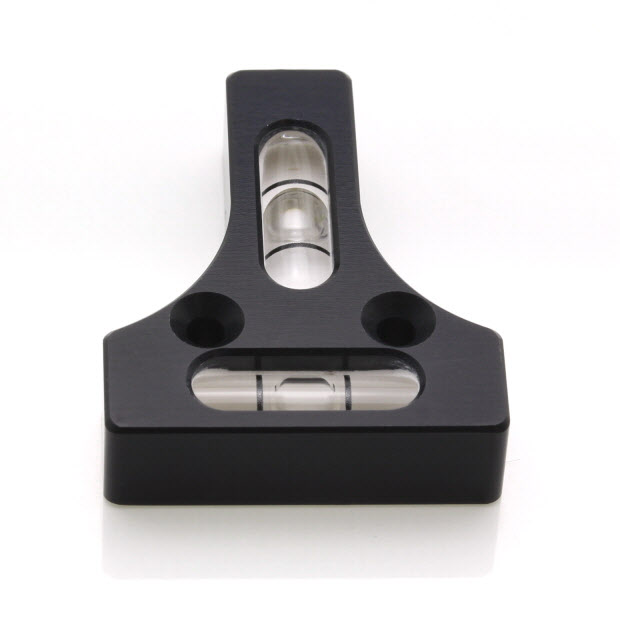

Instrument Levels » 2 Axis Levels » T10B - 2 Axis 'T' level, 25.4 x 31.8 x 7.5 mm, Sens; 26'/2mm

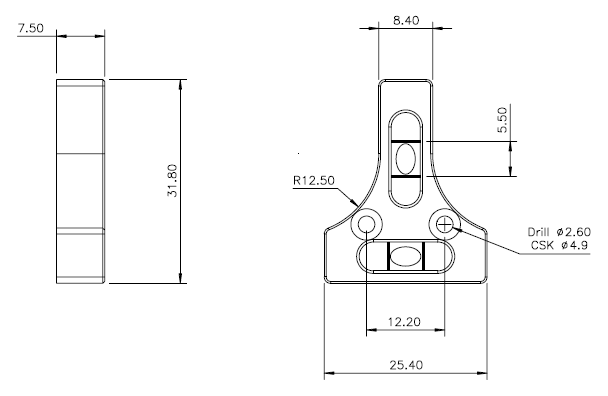

Product Drawing (pdf 113 kB) T10B – 2 Axis ‘T’ level, 25.4 x 31.8 x 7.5 mm, Sens; 26’/2mm

Can be used free standing, or attached to an instrument.

Features

  • Machined Aluminium Housing
  • Sensitivity 26'/2mm division
  • Precision glass vials
  • High contrast viewing
  • Levelled with reference to precision base
  • Black anodised finish
  • Can be used free standing, or attached to an instrument.
  • Tritium illuminated version available
  • Suitable for outdoor use

Product Specification

Parameter Value Unit
Length 31.8 mm
Height 7 mm
Width 25.4 mm
Sensitivity Per Division 26 minutes
Division Size mm
Hole Centres 12.2 mm
Hole Diameter 2.6 mm
Magnetic No -
Case Material Aluminium -
Vial Material Glass -
Finish Black anodised -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Length 31.8 mm
Width 25.4 mm
Height 7 mm
Weight 6.33 Grams
Parameter Value Unit
Operational Temperature Range °C
Storage Temperature Range °C
