Vials » Plastic Cylindrical Vials » CY14 - Plastic cylindrical vial. 14x6mm, green liquid

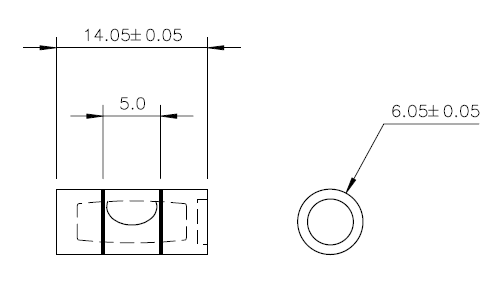

Product Drawing (pdf 46 KB) CY14 – Plastic cylindrical vial. 14x6mm, green liquid

One of our range of highest quality plastic cylindrical vials.

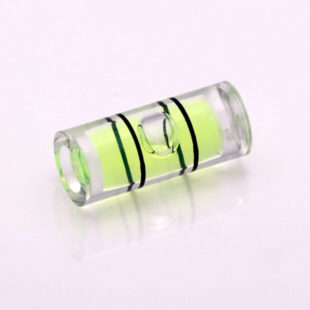

CY14 – Plastic cylindrical vial. 14x6mm, green liquid
1

Features

  • High quality PMMA housing
  • Ultrasonically welded seals
  • Sesnitivity 62'/2mm
  • Yellow/Green Liquid

Applications

  • Construction levels
  • Low cost laser levels
  • OEM Installation Tools

Product Specification

Parameter Value Unit
Diameter 6 mm
Overall Length 14 mm
Sensitivity Per 2mm 62 minutes
Bubble Size 3.5 mm
Line Spacing 5 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour Clear -
Dimension Value Unit
Diameter 6 mm
Overall Length 14 mm
Weight 0.39 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -20 to 65 °C
