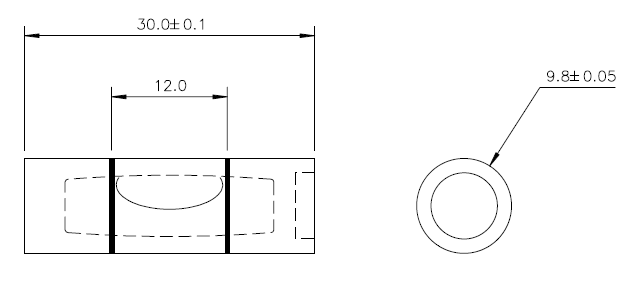

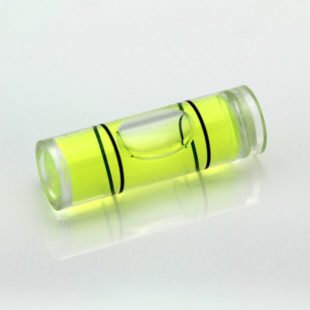

Product Drawing (pdf 54 KB) CY30/9.8 – Plastic cylindrical vial, 30×9.8mm, green liquid
One of our range of highest quality plastic cylindrical vials.
Features
- High quality PMMA housing
- Ultrasonically welded seals
- Sesnitivity 31'/2mm
- Yellow/Green Liquid
Applications
- Construction levels
- Low cost laser levels
- OEM Installation Tools
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 9.8 | mm |
| Overall Length | 30 | mm |
| Sensitivity Per 2mm | 31 | minutes |
| Bubble Size | 11 | mm |
| Line Spacing | 12 | mm |
| Line Colour | Black | - |
| Liquid Colour | Yellow/Green | - |
| Backing Colour | Clear | - |
| Dimension | Value | Unit |
|---|---|---|
| Diameter | 9.8 | mm |
| Overall Length | 30 | mm |
| Weight | 2.08 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -25 to 60 | °C |
| Storage Temperature Range | -40 to 70 | °C |
Similar Products
Buying Information
| Volume | Unit Price | inc VAT |
|---|---|---|
| 10 - 24 | $0.52 | £0.49 |
| 25 - 49 | $0.43 | £0.41 |
| 50 - 99 | $0.37 | £0.36 |
| 100 - 249 | $0.34 | £0.32 |
| 250 - 499 | $0.31 | £0.30 |
| 500 - 999 | $0.29 | £0.28 |
| 1000 - 2499 | $0.26 | £0.25 |
| 2500+ | POA | POA |
Quantity
Minimum order quantity:
10
18635 available for immediate despatch. More available in 28 days
For product queries, higher volume orders or custom OEM manufacture:
[email protected] +44 (0)20 8684 1400
Or use our contact form here
(Part Number for reference: CY30/9.8)
