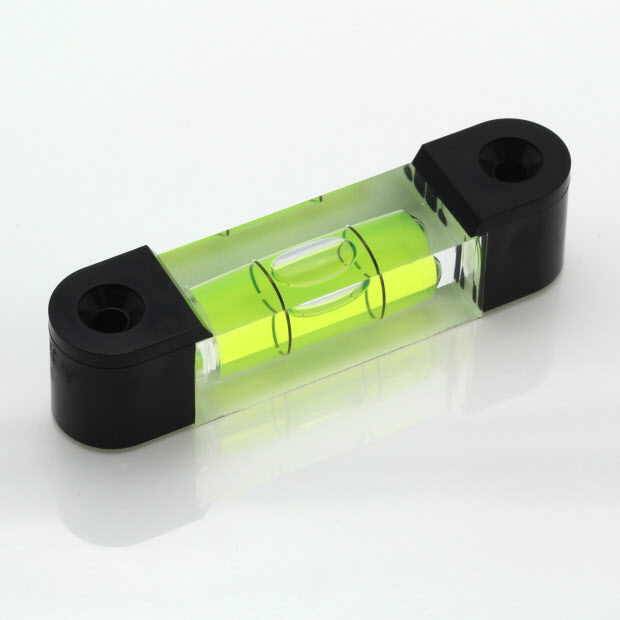

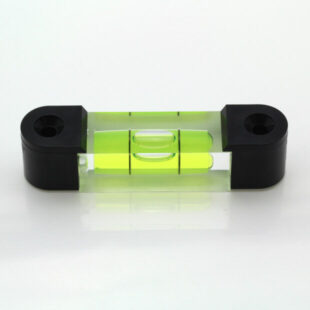

Vials » Plastic Screw On Levels » SF40 - Acrylic screw on level, 70mm long with black ends

Product Datasheet (pdf 62 kB) SF40 – Acrylic screw on level, 70mm long with black ends

Features

  • High quality, high optical clarity plastic
  • CNC machined bore
  • Sensitivity 34'/2mm bubble movement
  • Yellow/Green Filling liquid
  • White backing
  • Black end caps give good bubble contrast

Applications

  • Instrument levelling
  • Hand held tools requiring a screw on level

Product Specification

Parameter Value Unit
Length 70 mm
Width 15 mm
Height 17.5 mm
Sensitivity Per 2mm 34 minutes
Bubble Size 11 mm
Line Spacing 12.7 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour White -

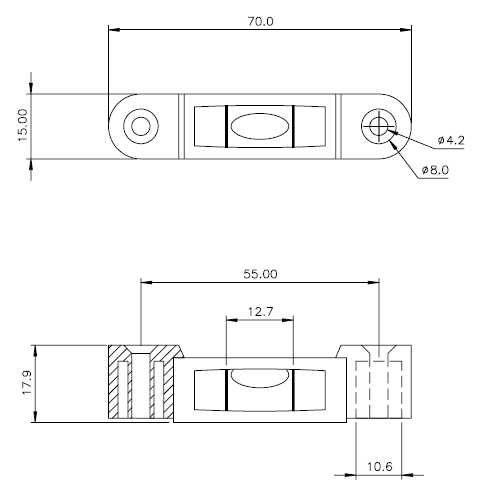

Dimension Value Unit
Length 70 mm
Width 15 mm
Height 17.5 mm
Hole Centres 55 mm
Hole Diameter 4.2 mm
Weight 14.5 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -20 to 65 °C
