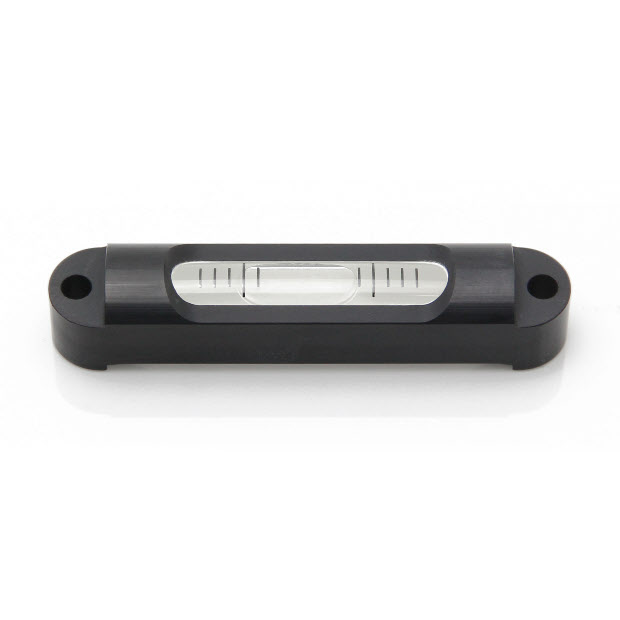

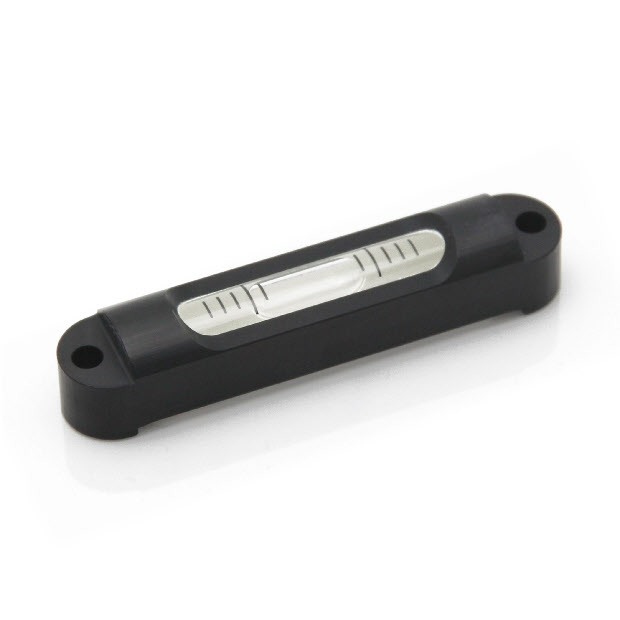

Product Datasheet (pdf 68 KB) GP15P – Instrument Level, 73mm long, sens 15’/div, black finish
Features
- Precision glass vial, sensitivity 15'/div
- Machined aluminium housing
- Black anodised finish
- Water resistant (waterproof version also available)
Applications
- Machine and instrument levelling
- Platform levelling
- Mobile crane levelling

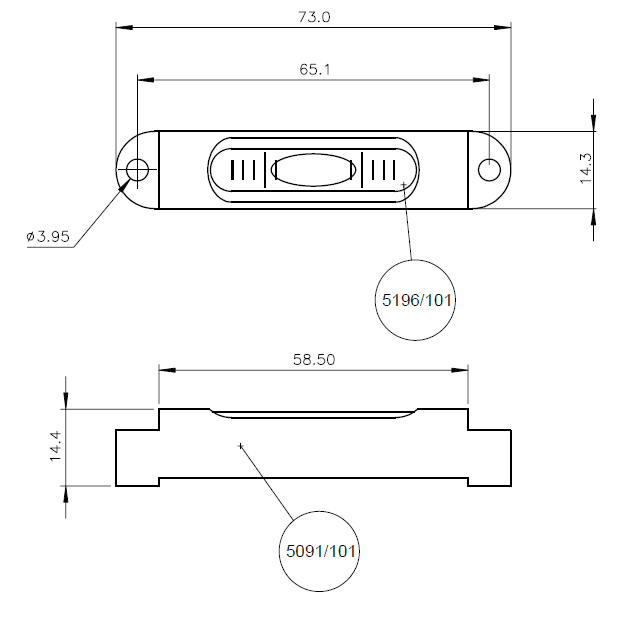

Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Length | 73 | mm |
| Height | 14.4 | mm |
| Width | 14.3 | mm |
| Sensitivity Per Division | 15 | minutes |
| Hole Centres | 65.1 | mm |
| Hole Diameter | 4 | mm |
| Magnetic | No | - |
| Cross Vial | No | - |
| Case Material | Aluminium | - |
| Vial Material | Glass | - |
| Finish | Black Anodised | - |
| Liquid Colour | Clear | - |
| Light | none | - |
| Dimension | Value | Unit |
|---|---|---|
| Length | 73 | mm |
| Width | 14.3 | mm |
| Height | 14.4 | mm |
| Weight | 20 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to 65 | °C |
| Storage Temperature Range | -40 to 65 | °C |
Similar Products
Buying Information
| Volume | Unit Price | inc VAT |
|---|---|---|
| 1 - 4 | $14.25 | £13.57 |
| 5 - 9 | $13.31 | £12.67 |
| 10 - 24 | $12.36 | £11.77 |
| 25 - 49 | $11.88 | £11.32 |
| 50 - 99 | $11.16 | £10.63 |
| 100+ | POA | POA |
Quantity
Minimum order quantity:
1
2 available for immediate despatch. More available in 30 days
For product queries, higher volume orders or custom OEM manufacture:
[email protected] +44 (0)20 8684 1400
Or use our contact form here
(Part Number for reference: GP15P)
