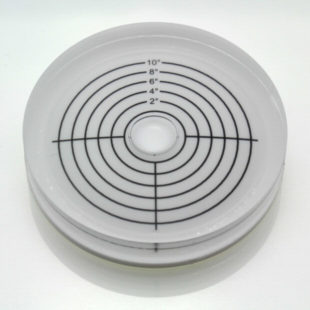

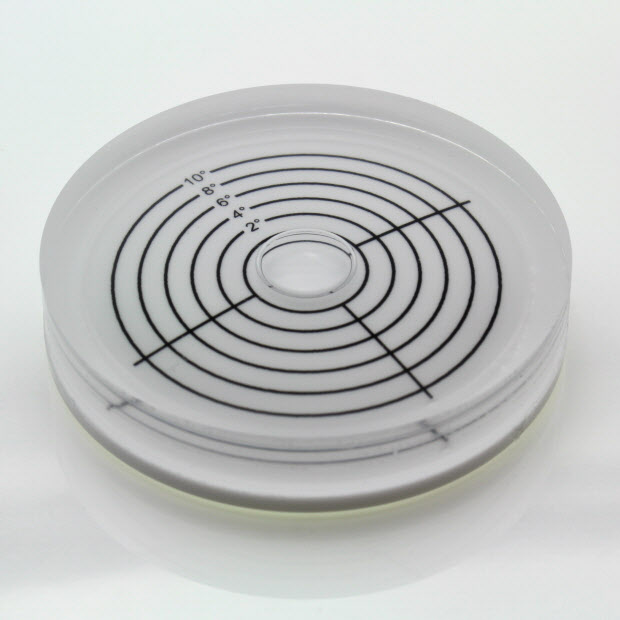

Circular Levels » Plastic Circular Vials » AV60/10 - Plastic circular level, Ø60x12mm, range ±10°

Product Datasheet (pdf 139 kB) AV60/10 – Plastic circular level, Ø60x12mm, range ±10°

Features

  • Measurement range ±10 degrees per division
  • Dual axis measurement

Applications

  • Circular inclinometer levels
  • Vehicle levelling and angle monitoring
  • Crane levelling and angle monitoring

Product Specification

Parameter Value Unit
Diameter 60 mm
Height 12 mm
Sensitivity 2 degrees per division
Backing Colour White -
Bubble Size 12.5 mm
Ring Diameter 14 mm
Ring Colour Black -
Liquid Colour Clear -

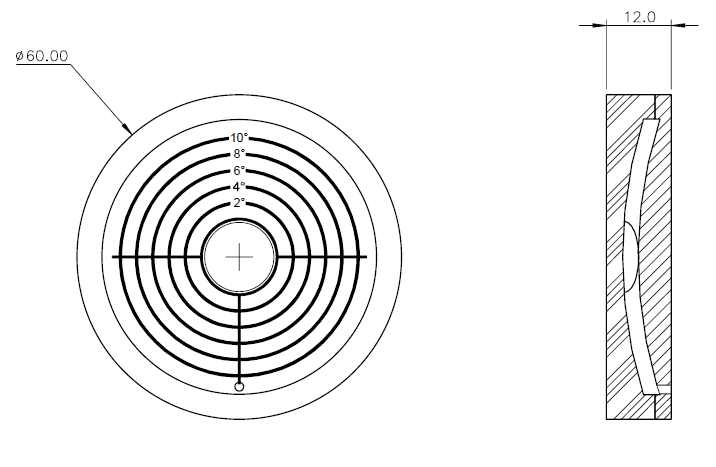

Dimension Value Unit
Diameter 60 mm
Height 12 mm
Weight 38.5 Grams
Parameter Value Unit
Operational Temperature Range -10 to 50 °C
Storage Temperature Range -20 to 60 °C
