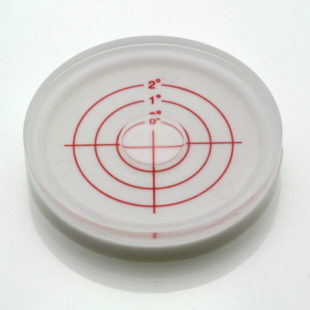

Circular Levels » Plastic Circular Vials » AV60/2 - Plastic circular level, Ø60x12mm, range 0-2°

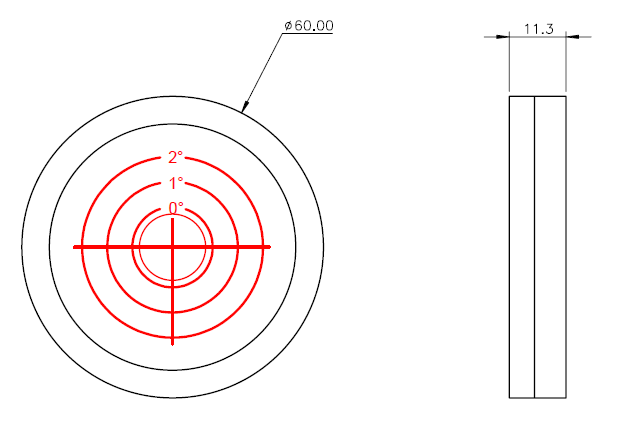

Product Drawing (pdf 83 kB) AV60/2 – Plastic circular level, Ø60x12mm, range 0-2°

Features

  • Range 0-2 degrees
  • Sensitivity = 1 degrees per 5mm bubble movement
  • 0,1,2° Markings
  • Dual axis measurement

Applications

  • Circular inclinometer levels
  • Vehicle levelling and angle monitoring
  • Crane levelling and angle monitoring

Product Specification

Parameter Value Unit
Diameter 60 mm
Height 11.3 mm
Sensitivity 1 degrees per 5mm
Backing Colour White -
Bubble Size 15 mm
Ring Diameter mm
Ring Colour Red -
Liquid Colour Clear -
Dimension Value Unit
Diameter 60 mm
Height 11.3 mm
Weight 35.3 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
