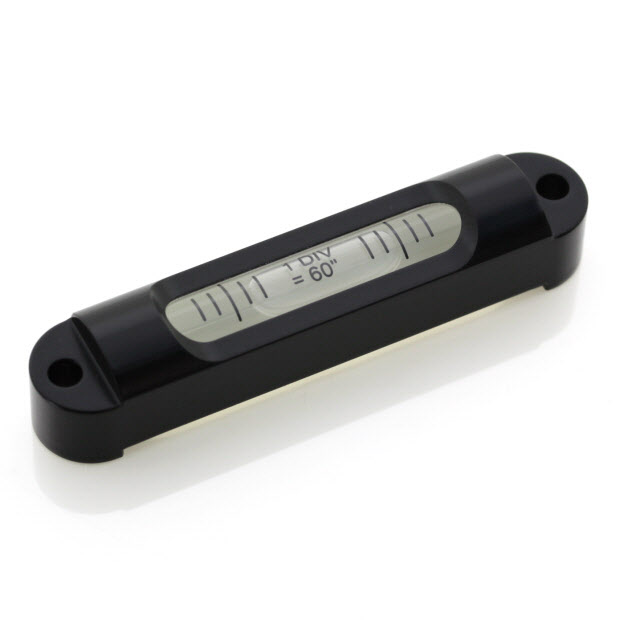

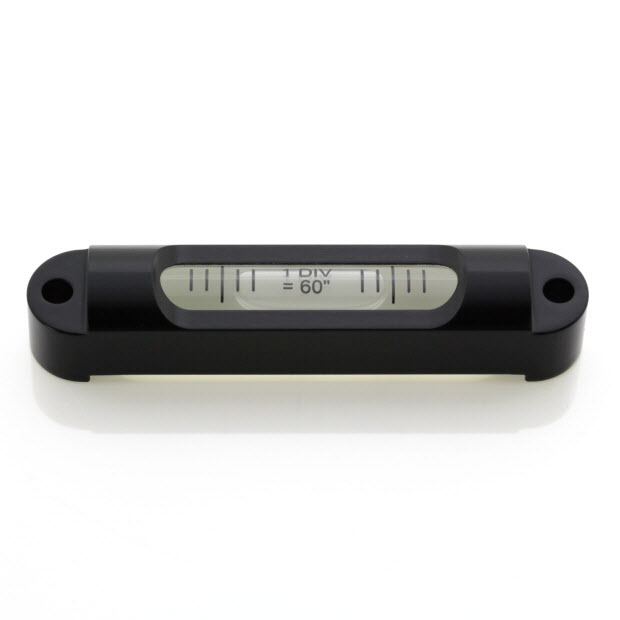

Product Datasheet (pdf 390 KB) GP15/60 – Instrument Level, 73mm long, sens 60"/div, black finish
Features
- Precision glass vial, sensitivity 60"/div
- Machined aluminium housing
- Black anodised finish
- Water resistant (waterproof version also available)
Applications
- Machine and instrument levelling
- Platform levelling
- Mobile crane levelling
Product Specification
Parameter | Value | Unit |
---|---|---|
Length | 73 | mm |
Height | 14.4 | mm |
Width | 14.3 | mm |
Sensitivity Per Division | 60 | seconds |
Hole Centres | 65.1 | mm |
Hole Diameter | 4 | mm |
Magnetic | No | - |
Cross Vial | No | - |
Case Material | Aluminium | - |
Vial Material | Glass | - |
Finish | Black anodised | - |
Liquid Colour | Clear | - |
Light | none | - |

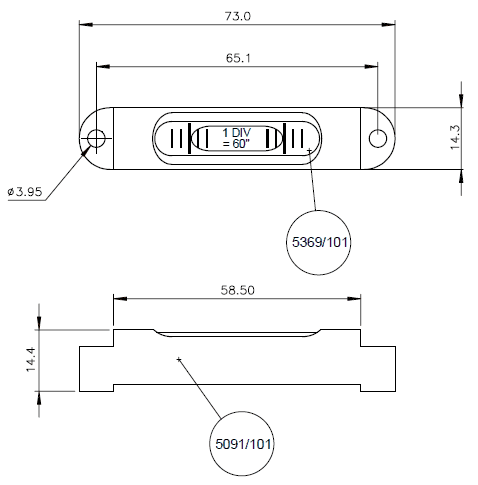

Dimension | Value | Unit |
---|---|---|
Length | 73 | mm |
Width | 14.3 | mm |
Height | 14.4 | mm |
Weight | 20 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 65 | °C |
Storage Temperature Range | -40 to 65 | °C |
