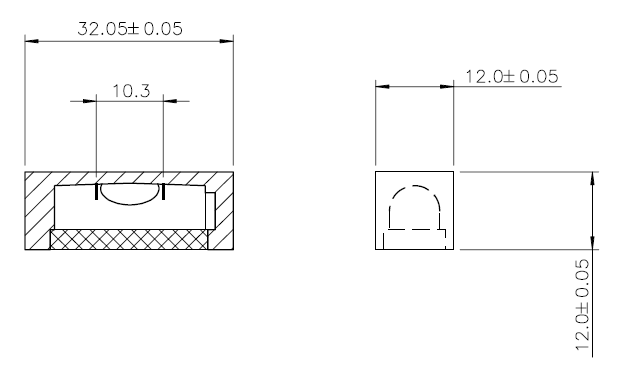

Product Drawing (pdf 53 KB) SC32 – Plastic sq. section vial, 32x12x12mm, green liquid

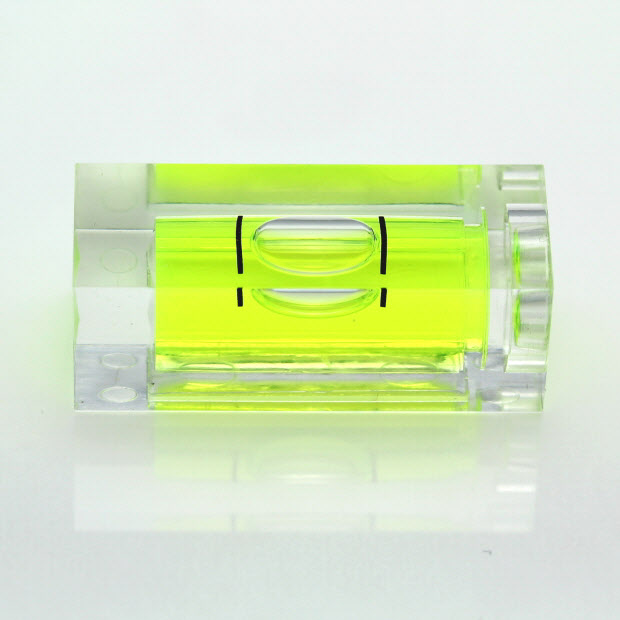

SC32 – Plastic sq. section vial, 32x12x12mm, green liquid

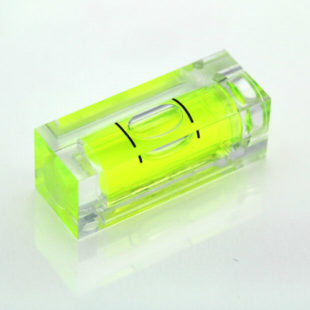

SC32 – Plastic sq. section vial, 32x12x12mm, green liquid
12

Features

  • High quality PMMA, scratch free, high optical clarity material
  • Precision machined internal radius
  • Internally printed Black lines
  • Minimal parallax error
  • Yellow/Green liquid

Applications

  • Construction levels
  • Levelling tools

Product Specification

Parameter Value Unit
Length 32 mm
Width 12 mm
Height 12 mm
Sensitivity Per 2mm 46 minutes
Bubble Size 8.7 mm
Line Spacing 9.8 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour Clear -
Dimension Value Unit
Length 32 mm
Width 12 mm
Height 12 mm
Weight 4.74 Grams
Parameter Value Unit
Operational Temperature Range -10 to 65 °C
Storage Temperature Range -20 to 70 °C
