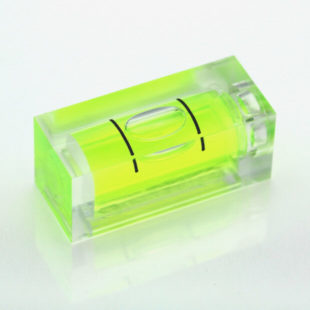

Vials » Plastic Square Section Vials » SC36 - Plastic sq. section vial, 36x15x15mm, green liquid

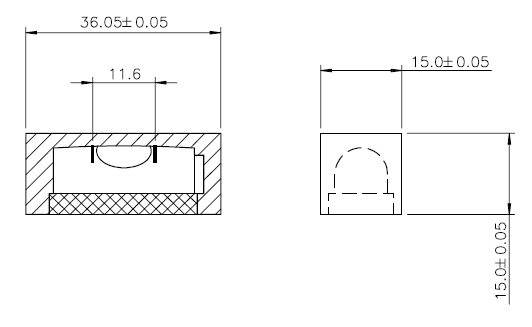

Product Drawing (pdf 52 kB) SC36 – Plastic sq. section vial, 36x15x15mm, green liquid

Features

  • High quality PMMA, scratch free, high optical clarity material
  • Precision machined internal radius
  • Internally printed Black lines
  • Minimal parallax error
  • Yellow/Green liquid

Applications

  • Construction levels
  • Levelling tools

Product Specification

Parameter Value Unit
Length 36 mm
Width 15 mm
Height 15 mm
Sensitivity Per 2mm 46 minutes
Bubble Size 10.7 mm
Line Spacing 12 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour Clear -
Dimension Value Unit
Length 36 mm
Width 15 mm
Height 15 mm
Weight 8.34 Grams
Parameter Value Unit
Operational Temperature Range -10 to 65 °C
Storage Temperature Range -20 to 70 °C
